Product Description:

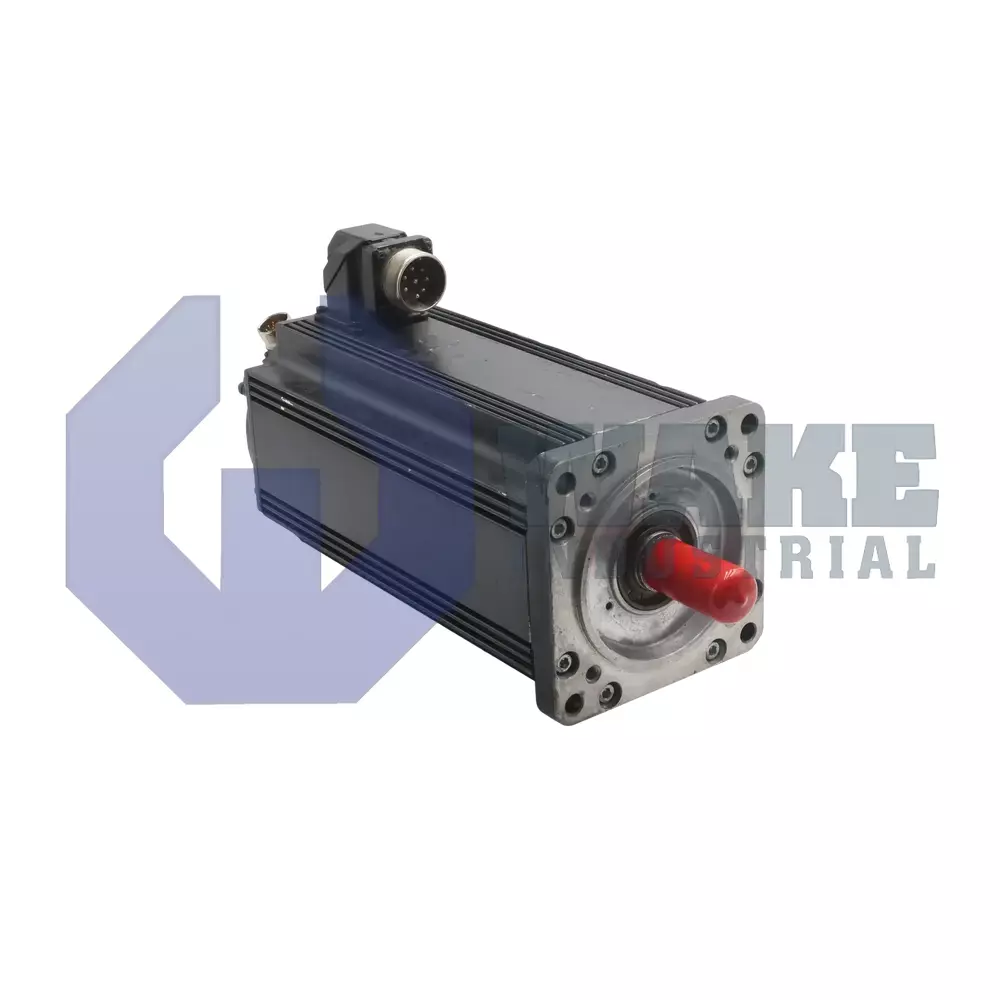

The MDD093C-L-030-N2M-110GA2 is a synchronous servo motor manufactured by Bosch Rexroth Indramat within the MDD Synchronous Motors series. As a motor for digital drive controllers, it converts drive current into precise rotary motion for positioning axes in packaging lines, gantries, and material-handling stations. The design follows motor size 093 with length code C, provides a plain shaft only on the drive side, and omits a side B extension to reduce overhang loads. This arrangement helps keep the mechanical envelope compact and leaves the non-drive end clear for surrounding machine parts.

The stator windings are rated for a nominal speed of 3000 rpm, permitting consistent velocity regulation when the drive issues a matching AC frequency. A blocking brake is integrated and can hold the shaft with 22 Nm of static torque during power-off conditions. Rotor position is reported by an integrated multi-turn absolute encoder, giving the controller an absolute count over multiple revolutions. Mechanical centering on the mounting flange is achieved by the 110 mm centering diameter, and the housing is prepared for surface cooling so continuous thermal load can be transferred to an external mounting surface. Dynamic behavior is also supported by standard balancing, which helps reduce residual vibration at elevated speed.

For closed-loop operation, encoder data is carried to the drive through digital servo feedback (DSF) connections that exit the housing on Side A. Power and feedback cabling share a rugged circular connector, and the fitted shaft seal helps keep contaminants away from the bearing area. This single-sided wiring arrangement leaves the opposite face open for mounting hardware and supports cleaner cable routing in compact machine layouts. The plain output shaft and centered flange also make the motor easy to integrate with couplings, pulleys, or other driven elements where accurate alignment is important.
