Product Description:

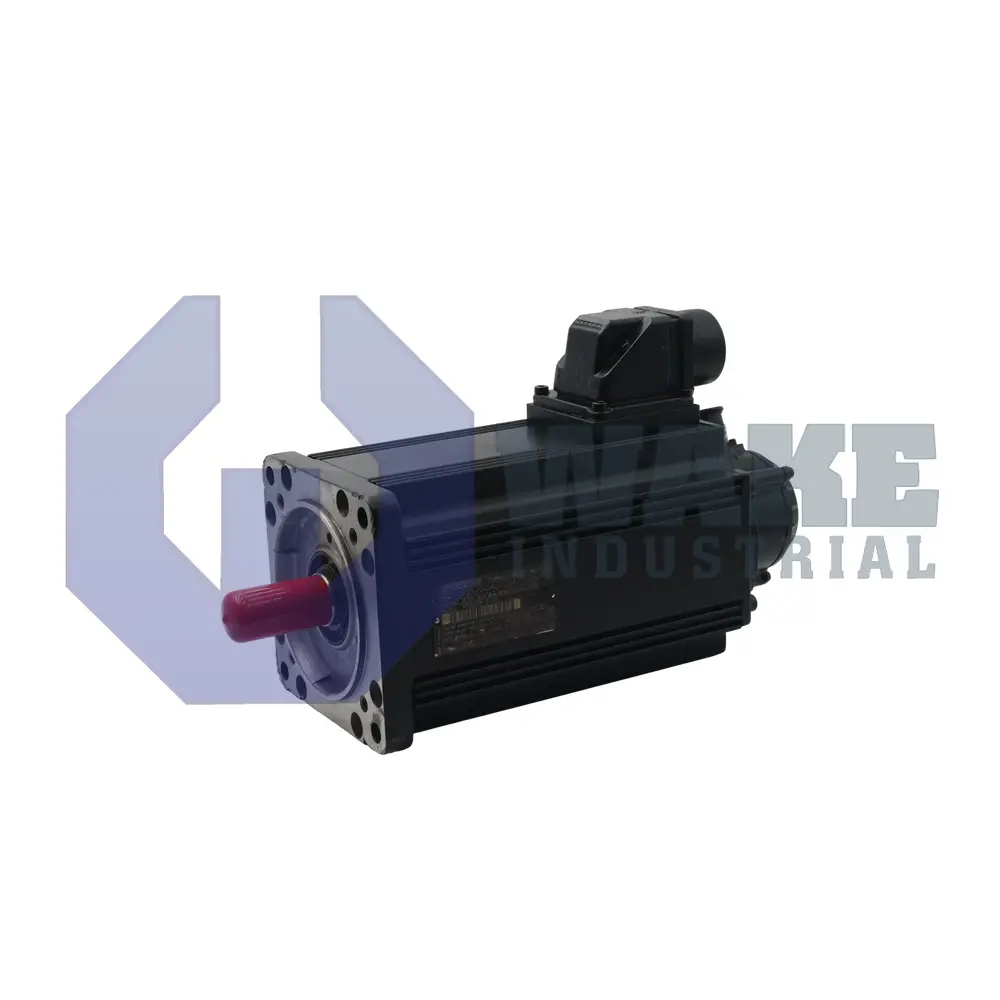

The MDD093B-N-040-N2L-110GR1 is a synchronous servo motor manufactured by Bosch Rexroth Indramat for the MDD Synchronous Motors series. It is intended for use with digital drive controllers, where it converts commanded current into precise rotary motion for controlled industrial axes. This arrangement supports accurate positioning on conveyors, tooling stations, and transfer systems that require repeatable speed and torque response. The motor is suited for automated equipment that depends on closed-loop motion control during both indexing and continuous running tasks.

At standstill, the motor can deliver a continuous torque of 14.5 Nm, which provides stable holding force during indexing cycles and low-speed operation. At rated current, it reaches a nominal speed of 4000 rpm, giving the drive a broad operating range for fast machine movements. An integrated blocking brake supplies 11 Nm of static torque to hold vertical or suspended loads when power is removed. Position data is returned through Digital servo feedback (DSF), so the controller receives high-resolution feedback for closed-loop regulation. The mounting interface uses a centering diameter of 110 mm, which helps align the motor accurately on the machine face.

The motor has a plain shaft that mates directly with couplings or pulleys in standard drive arrangements. A shaft seal is installed at the output end to limit lubricant migration and help protect internal components from contamination. All electrical terminations are made through a single multifunction connector, and the cable exit is oriented to the right side to support compact machine layouts. The motor uses frame code 093, and the housing is supplied in the standard enclosure. The shaft end construction does not include a side B output, which helps conserve axial installation space.
