Product Description:

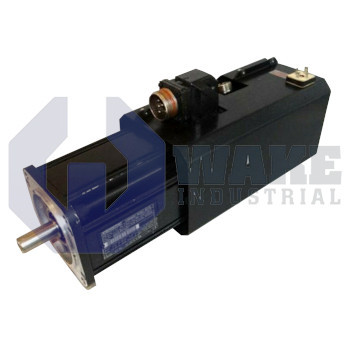

The MDD071C-N-060-N2S-095PL2 is a synchronous servo motor manufactured by Bosch Rexroth Indramat within the MDD Synchronous Motors series. Intended for use with digital drive controllers, the unit delivers position-accurate torque to pick-and-place axes, feeders, and other motion modules in automated assembly lines. Its electromagnetic design supports rapid acceleration and smooth speed regulation, which makes it suitable for compact machine layouts that require consistent rotary output. This also helps the paired drive maintain accurate motion during repeated starts, stops, and speed changes.

At its nominal speed of 6000 rpm, the rotor can follow high-frequency command changes from the controller and support short cycle times. During standstill, it sustains 6.6 Nm of continuous torque, so holding force is available without overheating. A blocking brake rated for 6.5 Nm engages automatically to secure vertical or suspended loads when the drive is disabled. Position data are returned through digital servo feedback (DSF), allowing the control loop to correct for load variations in real time. Power is transmitted through a keyway shaft that simplifies coupling to pulleys or gear inputs, and the single-ended shaft arrangement leaves the rear of the motor clear for cabling. A molded connector on the stator housing supports quick electrical disconnection and helps keep wiring paths compact.

The motor uses a centering pilot of 95 mm, so it seats accurately against matching mounting flanges. Cabling exits on the left side, which helps reduce cable bends when the axis is installed close to adjacent equipment. The frame size is 071 with a length code of C, and the motor uses standard balancing to reduce residual vibration during operation. A factory-installed shaft seal helps prevent lubricant migration into the motor interior and supports cleaner operation around the bearing area.
