Product Description:

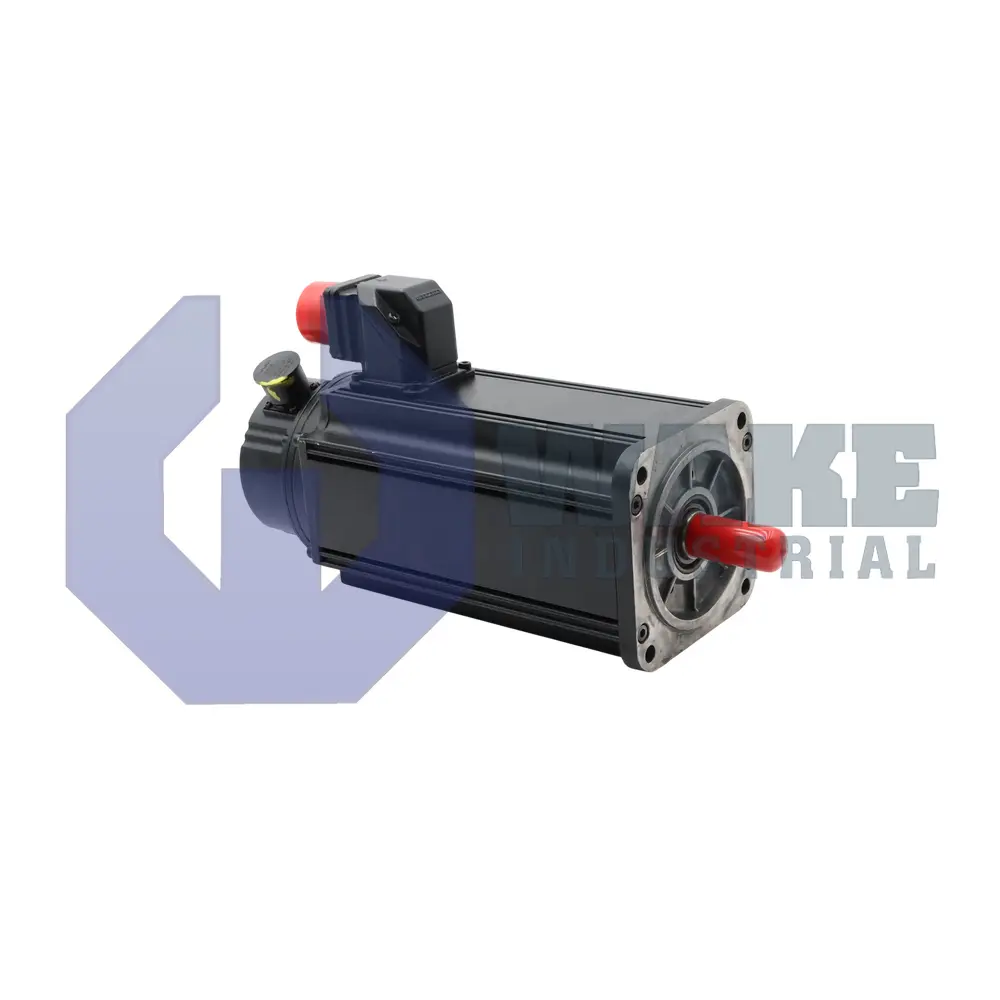

The MDD071C-N-030-R2L-095GA0 is a synchronous servo motor manufactured by Bosch Rexroth Indramat within the MDD Synchronous Motors series. Classified as a motor for digital drive controllers, it turns commanded drive currents into controlled rotary motion for tooling, conveyors, and pick-and-place heads in automated lines. This motor is intended for closed-loop servo applications where stable speed control and repeatable positioning are required throughout the duty cycle. The design uses the modular mechanical platform common to the series, so mounting dimensions and cable routing stay consistent across similar motor sizes.

At standstill, the motor provides a continuous torque of 6.6 Nm, allowing loaded axes to hold position without overheating. Its nominal speed of 3000 rpm matches common drive operating ranges so the motor can sustain rated performance through repeated production cycles. Accurate flange placement is aided by a centering diameter of 95 mm, and position data reach the controller through digital servo feedback (DSF), which lets the drive process rotor information without a separate external encoder. The frame follows size code 071, which suits medium-duty packaging, handling, and light machining applications. The housing uses the standard sealed enclosure of the series for general-purpose factory environments.

Power and feedback leads exit on side A, and the single plug-in connector keeps cabling compact around the motor housing. The rotor is balanced to class R to help limit vibration during continuous rotation. The output uses a plain shaft, and a shaft seal helps keep dust or coolant away from the bearing area during normal operation. Because the unit is supplied without a blocking brake, static holding on vertical axes must be provided by drive torque or an external clamping device. The C-length housing adds thermal mass while keeping overall depth moderate, and the shaft is present only on side A so the opposite end does not carry unnecessary overhung load.
