Product Description:

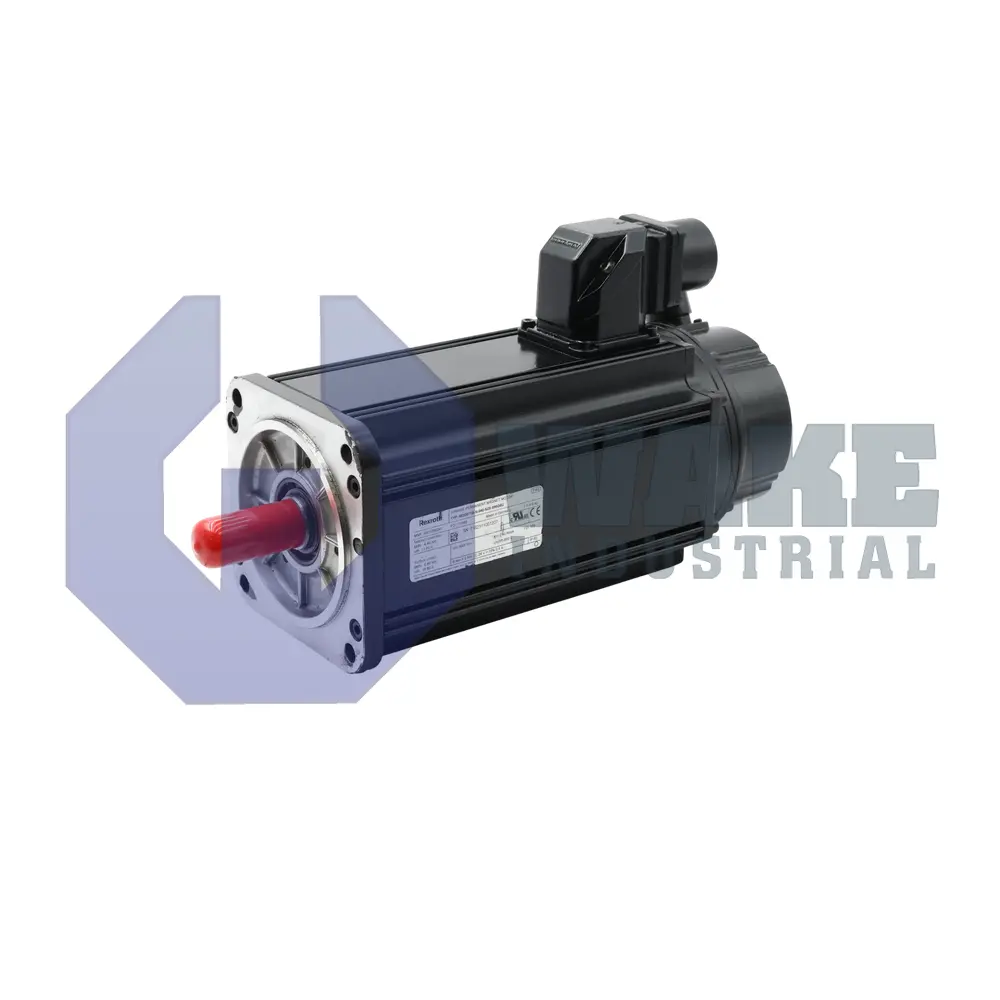

The MDD071C-N-030-N2T-095PR0 is a synchronous motor produced by Bosch Rexroth Indramat for the MDD Synchronous Motors series. It is intended to work with digital drive controllers that require consistent velocity and torque in automated assembly lines, pick-and-place units, and light cutting stations. By converting three-phase electrical power into regulated rotary motion, the unit provides the controlled mechanical output needed for precise axis positioning. Its format also suits installations that need accurate motion while staying within the standard mounting envelope of the series.

At standstill, the motor delivers a continuous torque of 6.6 Nm, providing stable force for holding or slow-feed operation. Under rated excitation, it reaches a nominal speed of 3000 rpm, which represents its continuous operating point. The flange pilot has a diameter of 95 mm, centering the frame to gearboxes or fixtures for repeatable alignment. The rotor balance is standard, which helps limit vibration during acceleration. Position information comes from an integrated multi-turn absolute encoder that reports through Digital servo feedback (DSF), supporting closed-loop motion control and stable position tracking. Mechanical power is transferred through a shaft with a keyway, allowing secure engagement with couplings or pulleys.

Electrical and feedback terminations use a connector on the right, which helps route cables cleanly in compact enclosures. The shaft journal is protected with a shaft seal, which helps keep contaminants away from internal bearing areas during normal operation. The motor is supplied without a blocking brake, so the axis must be held by drive torque or an external holding device when power is removed. It uses standard cast housing construction for general-purpose applications. A side-A shaft end, motor size 071, and length code C keep the overall package moderate while supporting inertia levels suited to mid-range servo tasks.
