Product Description:

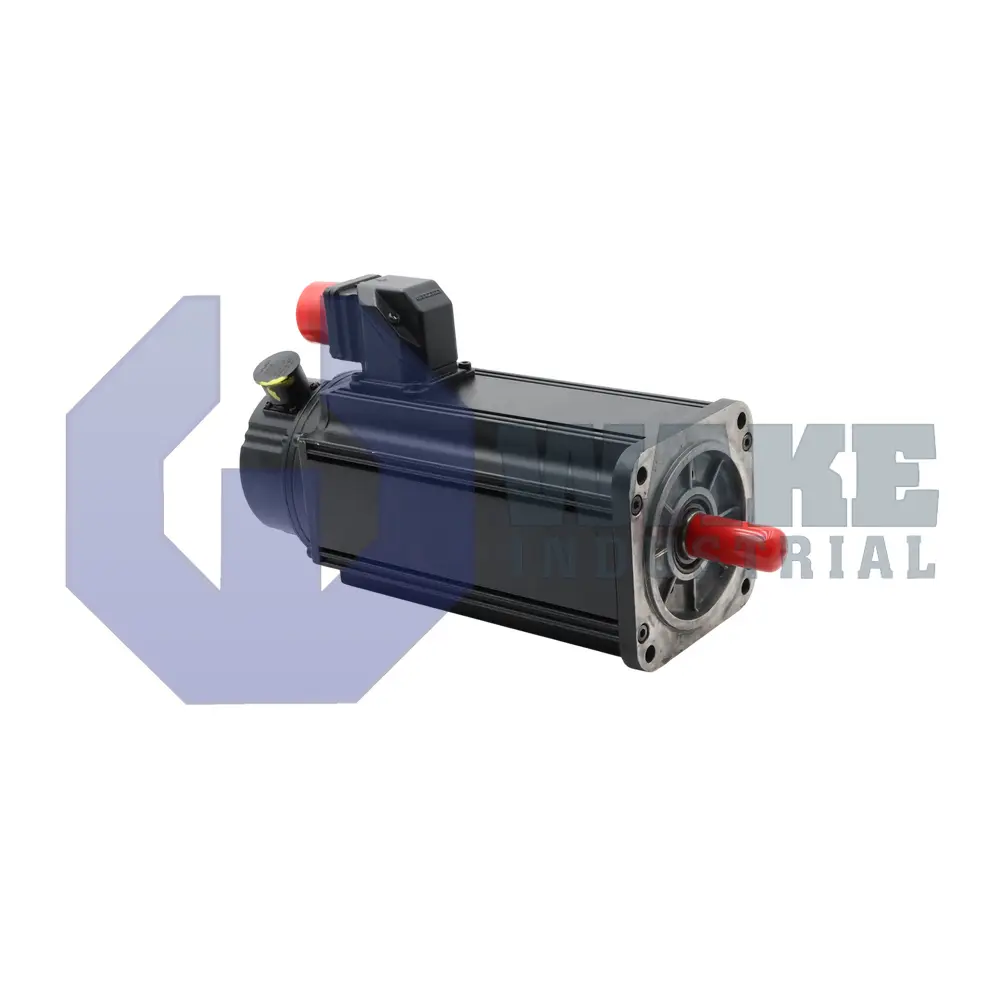

The MDD071C-N-030-N2L-095GA1 is a synchronous servo motor built by Bosch Rexroth Indramat for the MDD Synchronous Motors series. Designed for use with digital drive controllers, it converts electrical commands into rotary motion for positioning tables, feeders, and auxiliary axes in automated machinery. The 071 frame and C-length motor stack give it a compact outline while supporting higher continuous torque than shorter versions in the same family. An internal blocking brake helps hold the axis at rest, which is useful on vertical axes and in stop conditions where drift must be minimized.

Its continuous standstill output reaches 6.6 Nm, so the motor can deliver substantial torque at zero speed during controlled holding or low-speed positioning. The blocking brake provides a holding torque of 3.0 Nm when the axis must remain stationary without unwanted movement. The rotor has a nominal speed of 3000 rpm, giving the drive a common operating range for packaging, handling, and indexing tasks. A centering diameter of 95 mm helps align the motor accurately to mounting faces or gearbox flanges. Closed-loop operation uses digital servo feedback (DSF), which supplies position and velocity data for stable speed control and accurate motion response.

Electrical connections are routed through a front-facing connector, and both power and feedback connections leave on side A for straightforward cable routing in compact machine layouts. The output uses a plain shaft, which supports common clamping or keyed couplings without adding a second shaft end. The motor is supplied with a shaft seal to help limit the entry of contaminants and reduce lubricant migration near the bearing area. This arrangement keeps the housing easy to integrate where installation space is limited and where cable direction must remain predictable across multiple axes.
