Product Description:

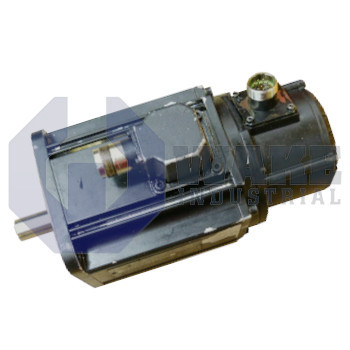

The MDD071A-N-060-N2T-095PL2 is a synchronous servo motor manufactured by Bosch Rexroth Indramat and supplied within the MDD Synchronous Motors series. As a motor for digital drive controllers, it converts electrical command signals into controlled mechanical rotation for positioning, speed, and torque tasks on automated axes. The unit interfaces directly with matching drive amplifiers, allowing coordinated motion on packaging lines, pick-and-place gantries, and transfer systems. Its synchronous design supports accurate speed regulation and repeatable positioning when the load changes during a cycle.

At its rated operating point, the motor reaches a nominal speed of 6000 rpm and supplies a continuous standstill torque of 2.2 Nm. A centering diameter of 95 mm aligns the housing with machine frames, and standard balancing helps limit vibration at high speed. Electrical connections exit to the left through a sealed connector, which can simplify cable routing in tight cabinets. Position data is generated by an integrated multi-turn absolute encoder and delivered as Digital Servo Feedback (DSF) for precise drive control. Size code 071 with length code A gives the motor a compact stator stack, and the standard housing supports convection cooling in typical plant environments.

For load holding and emergency stops, the motor is fitted with a blocking brake that develops 6.5 Nm of static torque. This brake helps keep the axis stationary when power is removed. A factory-installed shaft seal protects the internal bearings against coolant spray or airborne particles. The standard shaft end has a keyway so pulleys or couplings can transmit torque without slip. There is no shaft extension on side B, which helps keep axial space requirements low during installation. This layout is useful where adjacent components leave limited clearance behind the motor.
