Product Description:

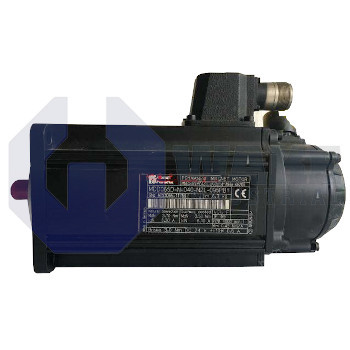

The MDD065D-N-040-N2L-095GB1 is a synchronous servo motor manufactured by Bosch Rexroth Indramat in the MDD Synchronous Motors series. Designed for digital drive controllers, it converts controlled electrical power into rotary motion for positioning and speed-regulated tasks on automated machinery such as feed axes, handling units, and indexing systems. This servo motor is intended for repeatable motion control where fast response and accurate regulation are required throughout the operating cycle. Electrical power and feedback signals enter through a single connector, which keeps cable routing compact and reduces the amount of space needed around the motor during installation.

This unit supplies a continuous standstill torque of 2.7 Nm, giving the drive enough margin to hold an energized load at zero speed. During operation, it can reach a nominal speed of 4000 rpm, which suits applications that need rapid but steady shaft motion. Mechanical alignment is simplified by the 95 mm centering diameter, and the cable connection is located on Side B to help keep connectors clear of nearby machine elements. An integrated blocking brake provides 3.0 Nm of holding torque so an axis can remain fixed when power is removed.

The motor uses frame size 065 and length code D, which set the housing proportions for this model. Feedback is provided by digital servo feedback (DSF), allowing the paired controller to monitor rotor position accurately during closed-loop motion without separate external feedback hardware. The output uses a plain shaft with a fitted shaft seal, which helps limit contamination at the bearing area and supports use in enclosed machine assemblies. The shaft end is supplied without an auxiliary side-B extension, and the housing and dynamic balancing use the standard grade. Because the shaft is not extended on the rear side, adjacent components can be placed closer to the back of the motor.
