Product Description:

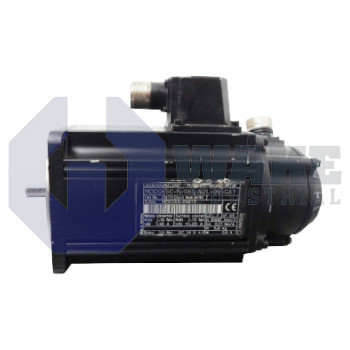

The MDD065C-N-060-N2M-095PA0 is a synchronous servo motor built by Bosch Rexroth Indramat for the MDD Synchronous Motors series. Classified as a motor for digital drive controllers, it converts commanded current into precisely regulated rotary motion, allowing automated machines to index, position, or track speed-sensitive loads inside packaging lines, pick-and-place gantries, and other motion-centric stations. The motor is suited for closed-loop axes that need repeatable response during frequent starts, stops, and speed changes in compact automation equipment.

This model delivers a continuous standstill torque of 2.1 Nm, giving the axis enough holding force for creep-feed moves without overheating. During normal operation, the rotor can reach a nominal speed of 6000 rpm, a value that pairs with compact mass for fast acceleration. A centering shoulder diameter of 95 mm aligns the frame concentrically to gearboxes or adapter plates, reducing imbalance that could shorten bearing life. Position data comes from an integrated multi-turn absolute encoder, enabling the controller to recover absolute shaft angle after power loss with no homing cycle. To protect lubricants and internal windings from airborne oil or moisture, a shaft seal is fitted at the front end.

Cabling is simplified because the power and feedback connections face Side A and use a keyed Connector interface that locks against vibration. Command and diagnostic signals follow the Digital servo feedback (DSF) protocol, allowing drive electronics to close high-resolution loops without additional converters. The rotor has a keyway shaft, while the shaft end on side B is omitted to save space in tandem builds. The motor uses standard balancing and a standard housing design, and motor length code C keeps overall depth moderate. Finally, the unit ships without a blocking brake, so any static holding requirement must be met by external mechanics or by maintaining drive torque.
