Product Description:

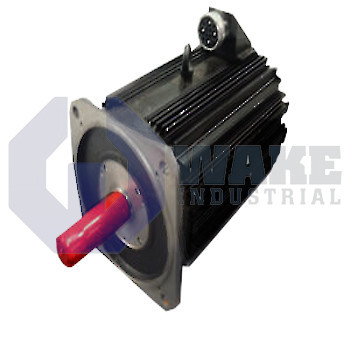

The MAF130C-0200-FQ-M2-AK0-05-A1 is a liquid-cooled asynchronous housing motor produced by Bosch Rexroth Indramat as part of the MAF IndraDyn Asynchronous Motors series. Intended for flange mounting directly onto machine plates, the motor provides regulated rotary power for automated transport, forming, and machining stations that run for long cycles. Its integrated cooling jacket and sealed housing allow continuous torque delivery where ambient airflow is restricted. The A-side power connector also helps keep wiring paths compact inside enclosed machine assemblies during long production runs.

Thermal management is handled by liquid cooling through a 1/4 inch connection thread that forms a closed loop with plant chillers. The enclosure is rated IP65, which helps block dust and water jets during washdown. An A-side fixed bearing absorbs axial force, and a shaft sealing ring helps prevent coolant migration toward the winding space. Shaft balance with a half key keeps vibration within Level A, and the motor reaches a rated speed of 2000 rpm when the drive regulates slip on the squirrel-cage rotor. Position feedback is supplied by a multi-turn absolute encoder that communicates through EnDat2.1, so reference data is available immediately after power-up and closed-loop motion can start without a homing routine.

The encoder operates from a supply of 7–12 V and delivers 2048 increments per revolution for fine interpolation in servo loops. Reliable service is permitted at ambient temperatures from 0 to 40 °C, and mechanical behavior meets class A limits under DIN EN 60034-14. The design omits a holding brake to reduce inertia, so standstill holding must come from the drive or external mechanics when needed. The keyway shaft supports positive torque transmission, and winding code 0200 with frame size 130 and length code C matches the motor's electrical and mechanical layout for this size.
