Product Description:

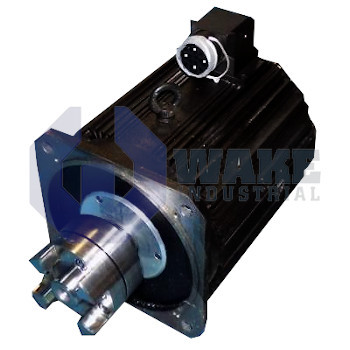

The MAF130B-0150-FQ-M2-AG0-05-N1 is manufactured by Bosch Rexroth Indramat and belongs to the MAF IndraDyn Asynchronous Motors series. As an asynchronous housing motor, it is installed on automated production lines that require continuous-duty operation and stable torque during processing, transport, or indexing tasks. A 130 mm frame with length code B and a plain shaft enable direct mechanical coupling, while a multi-turn absolute encoder provides closed-loop feedback so that motion controllers can hold position during slow-speed processing or rapid indexing.

This motor delivers its nominal output at a rated speed of 1500 rpm; that speed aligns with winding code 0150 and an insulation rating of F, allowing Class F thermal limits to be used for drive sizing. Position data are transmitted through an EnDat 2.1 interface, and the encoder electronics receive 7–12 V from the drive, supporting a resolution of 2048 increments per revolution. This feedback arrangement allows the drive to monitor rotor position directly during low-speed motion and controlled acceleration. Vibration severity conforms to level A under DIN EN 60034-14, and the motor uses standard bearings. The centering flange supports accurate alignment when the unit is installed on precision gearboxes or direct-drive stations.

Heat is removed by a jacket that uses liquid cooling; coolant enters and leaves through 1/4-inch connection threads so hoses can be kept short inside the machine frame. The housing carries an IP65 protection class, and shaft leakage is controlled by a sealing ring. Electrical power reaches the stator through an A-side connector, and the motor bolts to equipment with flange mounting. Because it is supplied without a holding brake, external clamping or drive torque must keep loads stationary. Operation is permitted in ambient temperatures from 0 to 40 °C, and the shaft follows DIN run-out limits so coupling wear remains predictable.
