Product Description:

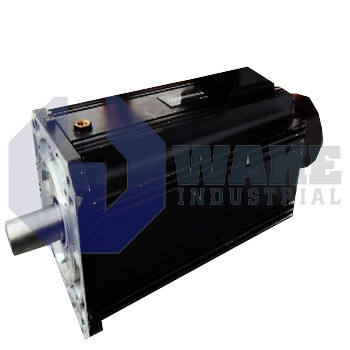

The MAF100C-0100-FR-S6-KG0-05-N1 asynchronous housing motor is produced by Bosch Rexroth Indramat within the MAF IndraDyn Asynchronous Motors series. It drives automated machinery that requires controlled speed and continuous torque in enclosed machine sections. The motor uses flange mounting, and it has a frame size of 100 with a compact C length. A plain shaft with a shaft sealing ring transfers load to the application while helping protect the standard bearings from external fluids. This version is supplied without a holding brake, operates with vibration level A, and follows DIN EN 60034-14 for balance requirements.

Thermal management in this asynchronous housing motor relies on liquid cooling that circulates through an enclosed rapid-action coupling sized at 1/4 inch. This connection allows quick attachment to a plant chiller while helping limit leakage at the cooling interface. The housing is rated IP65, which keeps dust and low-pressure water jets away from internal components. Feedback is provided by a single-turn absolute encoder for Ex-type motors that communicates over the EnDat2.1 interface and resolves rotor position at 2048 increments. A molded hybrid lead permits an encoder cable run of 15 m, and winding code 0100 matches the motor to the appropriate drive data.

The electrical side of the encoder is powered from 7–12 V, and the drive must maintain that supply so position data remains valid during operation. Under nominal conditions, the rotor turns at 1000 rpm, which suits applications that need steady speed with continuous torque output. The motor uses class F insulation to support normal thermal loading in industrial service. Continuous operation is approved for ambient temperatures from 0 to 40 °C, provided the liquid circuit remains active. This operating range is intended for installations where sealed construction and encoder-based feedback are both required.
