MAD130C-0200-SA-M2-AP1-05-N1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911323137

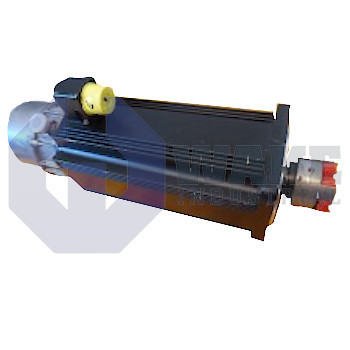

MAD130C-0200-SA-M2-AP1-05-N1 Spindle Motor manufactured by Rexroth, Indramat, Bosch. This motor has a cooling mode with an Axail Fan, Blowing and a Multiturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.

MAD130C-0200-SA-M2-AP1-05-N1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911323137
MAD130C-0200-SA-M2-AP1-05-N1 Spindle Motor manufactured by Rexroth, Indramat, Bosch. This motor has a cooling mode with an Axail Fan, Blowing and a Multiturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MAD130C-0200-SA-M2-AP1-05-N1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The MAD130C-0200-SA-M2-AP1-05-N1 is servo motor manufactured by Bosch Rexroth. It employs a multi-turn absolute encoder that aids in achieving maximum handling precision. The motor can reach a maximum speed of 10000 revolutions per minute while its rated speed is 2000 revolutions per minute. For mounting, the motor supports a flange mounting. With the motor being fan-cooled, it should be mounted in an environment that is well ventilated and has an adequate flow of cool air. The MAD130C-0200-SA-M2-AP1-05-N1 has an ingress protection rating of IP 65 and an easy maintenance design. Note that an IP 65 rating provides total protection against dust and protection against low-pressure water jets from any angle.

The MAD130C-0200-SA-M2-AP1-05-N1 belongs to the Bosch Rexroth family of motors. Motors in this family operate in either a duty cycle or general operation modes. The motor features a standard bearing assembly, an axial-flow fan for its cooling system, and has its line terminal on the A side. It weighs 122 kilograms. The motor has an electrically releasing brake that has a holding torque rating of 24.0 N-m, a rated voltage of 24 Volts, a rated current of 1.10 Amperes, and a holding brake moment of inertia of 0.000556 kilograms per meter (squared). Note, the holding brake has a connection time of 30 milliseconds and a disconnection time of 90 milliseconds.

The MAD130C-0200-SA-M2-AP1-05-N1 has a maximum torque, power, and current rating of 252.9 N-m, 47.15 kilo Watts, and a 106.7 Amperes rating. Its continuous torque at standstill and continuous current at standstill are rated at 115.0 N-m and 59.6 Amps. Additionally, the motor has a thermal time constant of 30 minutes and a cycle duration of 10 minutes.

MAD130C-0200-SA-M2-AP1-05-N1 Documents

  • MAD130C0200SAM2AP105N1
  • mad130c-0200-sa-m2-ap1-05-n1
  • MAD 130C 0200 SA M2 AP1 05 N1

MAD130C-0200-SA-M2-AP1-05-N1 Technical Specifications

Bearing: Standard
Cooling Mode: Axail Fan, Blowing
Encoder: Multiturn Absolute, 2048 increments
Mounting Style: Flange
