Product Description:

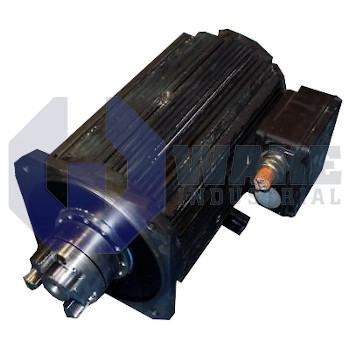

The MAD160C-0200-SA-S2-AH0-35-A1 is a servo motor manufactured by Bosch Rexroth Indramat as part of the MAD IndraDyn A Motors series. Built on a 160 mm frame with the C-length housing, it interfaces with IndraDrive power stages to deliver closed-loop motion for gantries, presses, and conveying lines. The motor converts drive-controlled three-phase power into rotational output for industrial automation. This arrangement supports accurate speed control and repeatable positioning in machinery that must respond quickly to changing load conditions.

Its nominal operating point is 2000 rpm, giving the drive system a fixed reference speed that matches the rated torque curve. Cooling is supplied by an axial fan, which forces air along the stator jacket to stabilize winding temperature during continuous duty. The enclosure has an IP65 rating, so dust and low-pressure water jets are kept away from live parts. Class F insulation allows winding temperatures up to 155 °C before thermal limits are approached. Mechanical installation uses flange and foot mounting, allowing either baseplate or end-shield attachment. All power and feedback plugs are positioned on the A-side, which helps keep cable routing organized when connections are directed in one path.

Rotor position is resolved by a single-turn absolute encoder EnDat 2.1, providing high-resolution feedback to the drive controller during speed and position control. The motor operates reliably within 0–40 °C ambient conditions, which covers standard indoor industrial temperatures. It uses a smooth shaft without a shaft seal, making it suitable for couplings that provide their own barrier against contamination. The absence of a holding brake reduces drag during startup, and vibration grade R supports stable mechanical operation. The 0200 winding code matches the electrical characteristics expected for this frame size.
