Product Description:

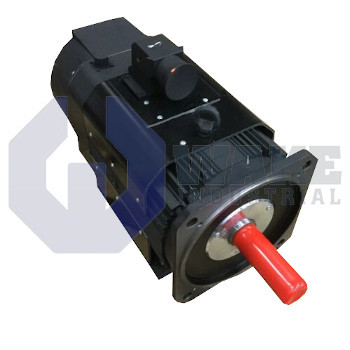

The MAD160C-0200-SA-M2-BP0-35-A1 is a servo motor manufactured by Bosch Rexroth Indramat and supplied within the MAD IndraDyn A Motors series. It provides drive torque for automated axes that require precise motion control and quick positioning in production machinery, packaging equipment, and transfer stations. When paired with a compatible IndraDrive amplifier, the unit converts commanded current into controlled rotor rotation for industrial automation tasks. Its design is intended for servo-controlled machine axes that require accurate acceleration, stable speed response, and repeatable stopping behavior during normal production cycles.

This motor attains a rated speed of 2000 rpm, matching applications that need moderate base velocity with ample torque reserve. Stator windings use Class F insulation, and heat is removed by an integrated axial fan that supports continuous operation under sustained load. The 160 frame size with C length gives the motor a larger magnetic stack without changing the basic mounting envelope, which helps increase continuous power density. The housing is sealed to IP65, enabling installation in areas exposed to dust or spray. Electrical and feedback leads exit on the B-side through a single connector, the housing supports flange or foot mounting, the encoder scans 2048 periods for commutation, and the motor is supplied without a holding brake.

A multiturn absolute encoder EnDat2.1 records shaft position over 4096 revolutions, so position information is available immediately after power-up. The output uses a whole-key balanced shaft with shaft seal, which supports torque transfer while helping prevent oil leakage and contamination entry at the shaft opening. Continuous service is permitted from 0–40 °C, making the motor suitable for standard industrial ambient conditions. Residual imbalance is limited to vibration grade R, which helps reduce transmitted vibration at the machine interface.
