Product Description:

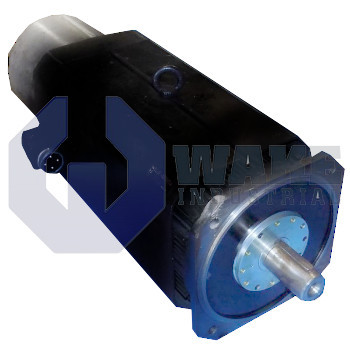

The MAD160C-0200-SA-M0-AK0-05-N1 is a servo motor produced by Bosch Rexroth Indramat and assigned to the MAD IndraDyn A Motors series. It is intended for precision position and speed control in automated equipment, where it converts drive power into regulated rotary motion for conveyors, tooling axes, and handling devices. The motor uses the modular architecture of the product line, so it can integrate with IndraDrive controllers and operate in coordinated multi-axis systems. This makes it suitable for machines that require repeatable motion, stable speed regulation, and accurate axis synchronization during continuous production.

Mechanical output is based on a rated speed of 2000 rpm. The motor uses winding code 0200, matched to the electromagnetic layout of the 160 mm frame size with C frame length. Heat is removed by an integrated axial fan mounted on the rear shroud, which supports continuous duty without external cooling equipment. The motor also uses a multiturn absolute encoder with 512 periods to provide position data across multiple revolutions for closed-loop control. Standard bearings and vibration grade R support smooth running under dynamic loads, and the IP65 enclosure helps protect internal components from dust and low-pressure water jets.

Installation is arranged for flange mounting, and the power and feedback connectors are located on the A-side to simplify cable routing at the machine. The motor has a half-key balanced shaft with a shaft seal, which supports rigid couplings while helping prevent lubricant loss. Operation is permitted in ambient temperatures from 0–40 °C, and the windings use Class F insulation to handle elevated internal temperatures during intermittent overloads. The motor is supplied without a holding brake, so static position retention requires an external clamping device when the axis must remain fixed at standstill.
