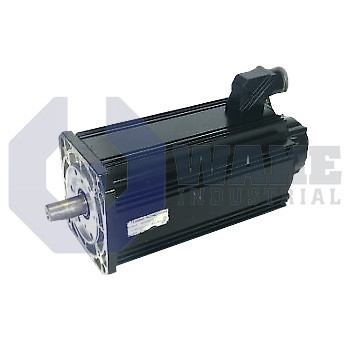

The Bosch Rexroth Indramat MAD160C-0150-SA-S2-BG0-35-V1 is a servo motor from the MAD IndraDyn A Motors series with a reinforced bearing and flange and foot mounting. It features a singleturn absolute encoder EnDat2.1, a rated speed of 1500 rpm, and uses an axial fan for cooling. The motor has a smooth shaft with shaft seal and comes without a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD160C-0150-SA-S2-BG0-35-V1 is a servo motor manufactured by Bosch Rexroth Indramat as part of the MAD IndraDyn A Motors series. It supplies commanded torque and velocity to automated presses, gantries, and transfer systems, translating drive-controller signals into precise shaft rotation required for repeatable production cycles. By combining compact frame dimensions with tight feedback integration, the unit supports multi-axis layouts where consistent motion quality is critical.
The motor reaches a rated speed of 1500 rpm, allowing drive programmers to match rotational velocity with process demands without overspeeding the mechanical system. A built-in axial fan directs airflow along the housing, removing heat generated by continuous current flow and keeping the winding temperature within safe limits. Its reinforced bearing set increases service life when radial or axial loads fluctuate during high-duty cycles. Feedback is provided by a singleturn absolute encoder EnDat 2.1, so the controller receives a unique position value after every power-on without a homing routine. Rotation is transferred through a smooth shaft with a shaft seal, which limits lubricant escape and blocks contaminants from the bearing chamber.
The electrical connections are arranged on the B-side of the housing and are terminated through a keyed connector, simplifying cable routing in compact cabinets. Installation can be completed by either face bolts or base feet because the design supports flange and foot mounting. Dynamic behavior is further defined by vibration grade R, ensuring the motor stays within specified oscillation limits when synchronized with coupled loads. Complementary details such as motor frame size 160, frame length C, winding code 0150, and the choice to ship the unit without a holding brake allow machinery builders to align inertia, electrical characteristics, and safety hardware with the requirements of their specific motion axis.
Frequently Asked Questions about MAD160C-0150-SA-S2-BG0-35-V1:
Q: What type of bearing is used in the MAD160C-0150-SA-S2-BG0-35-V1 motor?
A: This model uses a reinforced bearing for improved durability during operation.
Q: What cooling method does the MAD160C-0150-SA-S2-BG0-35-V1 servo motor utilize?
A: The MAD160C-0150-SA-S2-BG0-35-V1 is equipped with an axial fan for cooling.
Q: What type of encoder is featured in the MAD160C-0150-SA-S2-BG0-35-V1?
A: A singleturn absolute encoder with EnDat2.1 protocol is integrated in this motor.
Q: What shaft configuration does the MAD160C-0150-SA-S2-BG0-35-V1 have?
A: This servo motor comes with a smooth shaft that includes a shaft seal for additional protection.
Q: What is the rated speed of the MAD160C-0150-SA-S2-BG0-35-V1 motor?
A: The MAD160C-0150-SA-S2-BG0-35-V1 operates at a rated speed of 1500 rpm.
