Product Description:

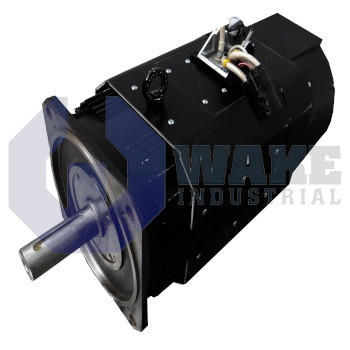

The MAD160C-0150-SA-S2-BG0-05-A1 belongs to the MAD IndraDyn A Motors series manufactured by Bosch Rexroth Indramat. It is a framed servo unit intended for flange-mounted drives in automated machinery where accurate torque and velocity loops are required. By combining electronic commutation with a single-cable connection option, the motor simplifies installation, reduces cable routing complexity, and supports the closed-loop positioning needed in packaging, material handling, and general motion platforms. This arrangement keeps the motor and feedback connection compact at the machine interface and reduces the number of separate cable runs that must be routed through moving assemblies.

The motor reaches a rated speed of 1500 rpm, achieved with forced ventilation from an integrated axial fan that pushes cooling air along the stator housing. Protection against dust ingress and low-pressure water jets is confirmed by its IP65 enclosure rating, allowing cabinet-free mounting near the axis. Power and feedback conductors exit on the B-side through a circular connector, which helps keep cable routing orderly in confined machine layouts. Rotor position is reported by a single-turn absolute encoder EnDat2.1 that produces 2048 periods per mechanical revolution for high-resolution feedback at the drive controller. The unit attaches directly to machine plates through a flange interface, and its frame length is coded as C to balance torque and installation depth. Winding code 0150 matches the electrical characteristics of this motor, while vibration grade R limits transmitted oscillation in dynamic axes. Because it is supplied without a holding brake, any static load retention must be handled by external mechanics or drive torque.

Operation is permitted in an ambient range of 0 to 40 °C, which suits standard factory conditions. The stator laminate stack uses a frame size of 160 mm, providing a mid-power footprint within the MAD portfolio. Insulation class F allows the windings to tolerate internal hot-spot temperatures up to 155 °C without degradation during normal duty cycles. Output torque is transferred through a smooth shaft with a shaft seal, which helps prevent lubricant migration and supports coupler or pulley mounting without a keyway. The shaft style is suited to friction-fit hubs and clamp couplings commonly used where precise concentricity and simple mechanical integration are preferred.
