Product Description:

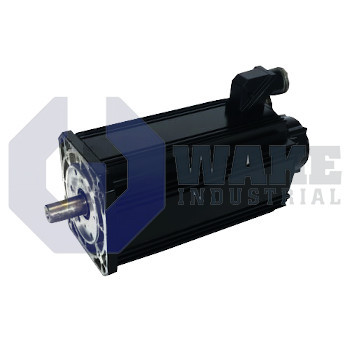

The MAD160C-0150-SA-M2-BP0-35-V1 is a servo motor produced by Bosch Rexroth Indramat within the MAD IndraDyn A Motors series. Designed for closed-loop motion axes, the unit provides precise torque and speed control for machinery used in material handling, packaging, and general automation. Its frame construction and electronic feedback make it suitable for constant-duty rotary applications.

Mechanically, the motor is built on frame size 160 with length code C, so its stator package supports a moderate torque range while keeping installation depth manageable. A rated speed of 1500 rpm supports direct coupling to medium-speed shafts. The housing is sealed to IP65, which helps prevent dust ingress and water jets from reaching the interior during operation. Heat is removed by a front-mounted axial fan, so the motor does not require an external liquid-cooling circuit. Position information is supplied by a multiturn absolute encoder EnDat2.1 with up to 2048 signal periods, allowing immediate position availability after power cycles. The rotor uses a reinforced bearing set for higher radial-load capability, and electrical leads exit on the B-side through a keyed connector. The whole-key balanced shaft also includes a seal to help guard against lubricant loss.

Support features match demanding duty cycles. Class F insulation permits winding temperatures up to 155 °C, while safe ambient operation is specified between 0 °C and 40 °C. The motor is supplied without a holding brake, so static torque must be provided by the drive or by external clamps. Installation flexibility is improved by flange and foot mounting, allowing either face or base attachment to the machine frame. Dynamic behavior is tuned for industrial drives through vibration grade R, which helps reduce transmitted oscillation to connected mechanics. Internal copper geometry follows winding code 0150, giving electrical constants matched to standard drive inverters.
