Product Description

The MAD asynchronous motor series by Rexroth Bosch Group represents heavy-duty and high-torque motors. The series is an enhancement to the older IndraDyn A series and showcases some powerful motors featuring the ATEX design as per 94/9/EC directives. Because of the Ex-design, these motors can be installed in explosive atmosphere.

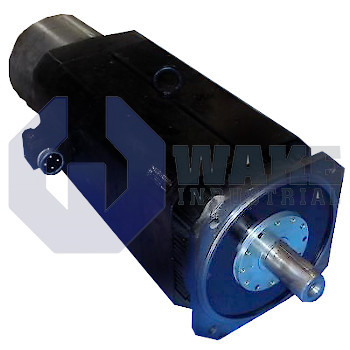

The part number MAD160C-0100-SA-S2-AH0-05-N1 belongs to the family of MAD Asynchronous motors by Rexroth Bosch Group. The name “MAD” represents a series of motors featuring air-cooled housing. This air-cooled motor series offers two cooling options for fan mounting: a mounted axial fan or a fan top with cowl. This particular model features a mounted axial fan for cooling. The MAD160C-0100-SA-S2-AH0-05-N1 motor has a motor frame size of 160 mm and it belongs to the length category C. The winding code of the motor is “0100” that indicates it has a rated speed of 1000 RPM. The Rexroth motor offers a Singleturn absolute EnDat2.1 encoder that offers 2048 increments. The motor features electrical connection on top of the motor housing and it’s in the same direction as the motor shaft. The MAD160C-0100-SA-S2-AH0-05-N1 asynchronous motor has a plain shaft without a sealing ring, and there is no holding brake either. The motor is equipped with a fixed A-side bearing. With this bearing setting, the motor can reach up to 6000 RPM. The motor model’s vibration severity conforms to DIN EN60034-14.

The MAD160C-0100-SA-S2-AH0-05-N1 asynchronous motor has a rated torque of 225 Nm and its rated power is 23.56 kW. The torque of the motor peaks at 530.0 Nm while its maximum power output is 51.52kW. All MAD160C motors have the mass of 238 kilograms and they have 2 pole pairs. This high torque motor offers super-fast acceleration/deceleration as its rotor inertia is just 0.311 kg-m².
