MAD160C-0050-SA-M2-HH0-35-N1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911335091
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

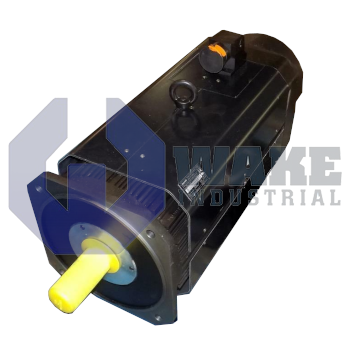

MAD160C-0050-SA-M2-HH0-35-N1 Spindle Motor manufactured by Bosch Rexroth Indramat. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD160C-0050-SA-M2-HH0-35-N1 is a powerful asynchronous motor manufactured by Bosch Rexroth. It has an easy to service design that helps in reducing operational downtimes and comes with a squirrel-cage rotor, whereas its body is effectively cooled via fan. The IP 65 rating allows for a diverse range of application of this model as it finds use in rotary applications involved in metal-forming, printing and paper processing machines, and machine tools etc. The rated power of the unit is 12.6 kW and its rated torque is 240 Nm. The rated current is around 27.6 A and its weighs 238 kg without the holding brake.
The MAD160C-0050-SA-M2-HH0-35-N1 comes with a winding type 0050 in a size 160 and length C and it is blow cooled using an axial fan. The encoder installed in the unit is a multiturn absolute encoder EnDat2.1 with 2048 increments and it has an electrical connection towards side B using a terminal box. The shaft accompanied with the unit is a plain shaft without a shaft sealing ring and there is no holding brake installed. The motor comes with a flange and foot mounting and a standard bearing. The overall body has the capability to withstand a vibration severity of grade A as per DIN EN 60034-14.
The Wake Industrial website features the MAD160C-0050-SA-M2-HH0-35-N1 where it can be easily ordered.The motor comes with a 1-year warranty and includes all necessary technical installation and operational documentation for an easy on-boarding experience. However, if still any issue occurs, our team is readily available to extend necessary assistance on priority.
