MAD130D-0200-SA-S2-AH1-35-R1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911321396
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

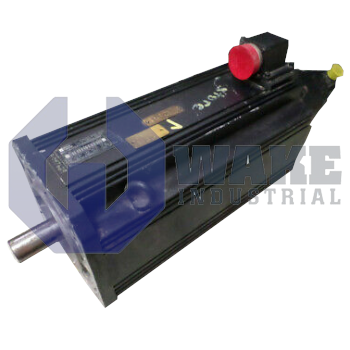

MAD130D-0200-SA-S2-AH1-35-R1 Spindle Motor manufactured by Bosch Rexroth Indramat. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD130D-0200-SA-S2-AH1-35-R1 from Rexroth is part of the 130D series of servo motors in the MAD line-up and is a high-torque-producing motor, offering a 150 Nm torque rating. This motor requires an input voltage range of 167 to 475 volts AC with an input frequency ranging from 50 Hz to 60 Hz, making the motor compatible with various power systems and complying with global standards. The power connectors for this servo motor are placed on the top of the servo housing, making it easier for users to wire up the motor even if it is mounted in constricted spaces.
To mount this servo motor, the MAD130D-0200-SA-S2-AH1-35-R1 can be mounted using both flange and foot mounting options, making this motor very versatile and easy to use for varying applications. For load-intensive applications such as robotics or industrial control systems, mounting the servo motor directly onto a system using a flange is ideal as it reduces axial stress and prevents the shaft from being bent or breaking under load.
This motor comes with a cooling blower fan that regulates the ambient air within the motor housing, keeping the coil cool and preventing the servo motor from overheating. Even with the inclusion of a high-power blower fan capable of generating an airflow of up to 1000 m3 per hour, the MAD130D-0200-SA-S2-AH1-35-R1 has a noise level rating of 70 dB, which is very quiet for an industrial-level servo motor capable of generating high speeds and rotational torque. The maximum speed this servo motor can attain is up to 7500 rpm.
