Product Description:

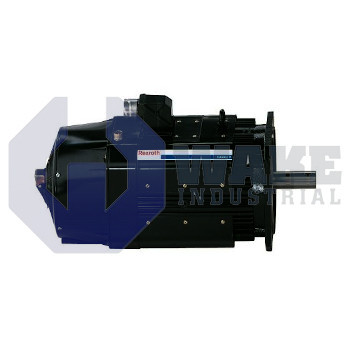

The MAD130D-0050-SA-C0-AG0-05-A1 is a servo motor manufactured by Bosch Rexroth Indramat for the MAD IndraDyn A Motors series. Within automated machinery, it serves as the driven element that translates commanded current into precise rotary motion for feed axes and ancillary positioning tasks. The model uses the 130 mm frame size and the D frame length, and it incorporates winding code 0050 to match the electrical constants required by IndraDrive amplifiers while maintaining moderate dimensions for cabinet-friendly integration.

An integral axial fan forces air through the housing and enables the motor to maintain its rated thermal profile during continuous duty. The enclosure carries an IP65 rating, so internal components remain protected against dust ingress and low-pressure water jets common in washdown areas. Mechanical coupling to the machine is handled through flange mounting, which aligns the stator face to precision dowel bores without additional brackets. Power and feedback conductors terminate in a single connector, and these connections emerge on the A-side of the housing to simplify cable routing along the machine frame. Under closed-loop control, the rotor operates at a rated speed of 500 rpm, which suits high-torque indexing tables that must position heavy tooling accurately.

Windings use insulation class F, giving a 155 °C thermal ceiling that works with the fan to help prevent varnish breakdown under load. Operation is permitted in ambient temperatures from 0 to 40 °C, allowing installation on factory floors without climate conditioning. A smooth shaft with a shaft seal keeps lubricant inside the gear interface while withstanding splashes from coolant lines. The motor has vibration class R, and it is supplied without a holding brake, so any static load retention must be handled by the drive or external mechanics.
