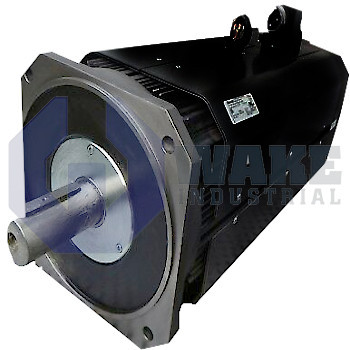

The Bosch Rexroth Indramat MAD130C-0200-SA-M2-AP0-05-N1 is a servo motor from the MAD IndraDyn A Motors series. This flange mounted motor has a frame size of 130, rated speed of 2000 rpm, and features axial fan cooling. It comes with an IP65 protection rating and a multiturn absolute encoder EnDat2.1.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD130C-0200-SA-M2-AP0-05-N1 belongs to the MAD IndraDyn A Motors series from Bosch Rexroth Indramat. It is a servo motor selected for industrial automation where precise velocity and torque control are required on synchronized axes. A flange mounting face allows direct coupling to machine frames, while a whole-key balanced shaft with an integral seal keeps contaminants away from the internal bearings during continuous operation. The motor is suitable for packaging, handling, and other automated systems that require repeatable rotary motion under changing load conditions.
An internal axial fan moves cooling air along the housing so the windings stay within the thermal limits assigned to insulation class F. Position feedback is handled by a multiturn absolute encoder EnDat2.1, which retains count data across power cycles and simplifies homing. The motor delivers its mechanical output up to 2000 rpm, a rated speed that corresponds to its nominal electrical frequency and torque curve. A cast-on enclosure with an IP65 rating blocks dust ingress and water jets, enabling cabinet-free mounting on production equipment. Power and feedback conductors terminate on the A-side through a single connector, reducing wiring loops, and the standard bearing set supports radial loads encountered in belt or gear transmissions.
The motor operates in ambient temperatures from 0–40 °C without derating and withstands machine floor vibrations that correspond to grade R. Its frame size of 130 mm and frame length code C set the stack height and torque capacity, while winding code 0200 matches the electrical characteristics expected by compatible IndraDrive inverters. The digital encoder provides 2048 signal periods per revolution for fine speed loops, and the rotor is balanced to minimize residual force on adjacent mechanics. This encoder arrangement supports accurate position tracking during repeated indexing moves. Because the unit is supplied without a holding brake, applications that need static load retention must rely on external clamping devices.
Frequently Asked Questions about MAD130C-0200-SA-M2-AP0-05-N1:
Q: What type of cooling is implemented in the MAD130C-0200-SA-M2-AP0-05-N1 motor?
A: The MAD130C-0200-SA-M2-AP0-05-N1 motor uses an axial fan for cooling.
Q: What type of encoder is equipped on the MAD130C-0200-SA-M2-AP0-05-N1?
A: This model features a multiturn absolute encoder with EnDat2.1 protocol.
Q: What shaft configuration does the MAD130C-0200-SA-M2-AP0-05-N1 motor have?
A: The shaft is a whole-key balanced type with a shaft seal for additional protection.
Q: What is the protection rating for the MAD130C-0200-SA-M2-AP0-05-N1 motor?
A: The MAD130C-0200-SA-M2-AP0-05-N1 motor provides a protection rating of IP65.
Q: Does the MAD130C-0200-SA-M2-AP0-05-N1 motor come with a holding brake?
A: This servo motor does not include a holding brake.
