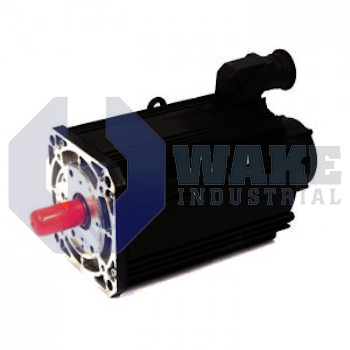

The Bosch Rexroth Indramat MAD130C-0200-SA-M0-AP0-35-N1 is part of the MAD IndraDyn A Motors series and features a 130mm frame size with natural cooling. This servo motor delivers a rated torque of 2.0 Nm and operates at 400 V with an angular plug power connection. It has an IP65 protection rating and a 22-bit absolute encoder.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD130C-0200-SA-M0-AP0-35-N1 is an MAD series induction motor manufactured by Rexroth Indramat. It features an axial fan that blows the air inside the body to keep the temperature ambient during operations with an air flow of 588.58 CFM. The fan uses 139-208 VA of power from a source of 400V ±15% or 480V ±10% at 50/60 Hz.
The MAD130C-0200-SA-M0-AP0-35-N1 induction motor incorporates both flange and foot mounting options of installation. It delivers 110 Nm of torque normally and consume a rated power of 23 kW while the amount of continuous torque at standstill is 115 Nm. The MAD130C induction motor’s operating current measures 57 A and the standstill continuous current can reach 59.6 A. When it comes to thermal time, it takes 50 minutes to reduce the temperature by half and it possess a duty time of 10 minute during S6 operating mode. There are 3 pairs of poles that allow the rotor to spin adequately and the motor components has a discharge capacity of 19.3 nF. The shaft turns at a speed of 2000 r/min in normal scenario but with its standard greased ball bearings its peak speed can go up to 7500 r/min. The MAD130C induction motor weighs 122 kg and omits holding brake from its initial design.
The MAD130C-0200-SA-M0-AP0-35-N1 induction motor features an 8 V operating, multiturn absolute encoder that covers 512 incremental periods. The encoder has a 1 VSS sinusoidal signal output and uses the I²C interface method. The MAD130C induction motor offers a heat insulation of class F and is safeguarded with IP65 protection from external intrudes. It comes with a fully sealed balanced shaft that is 42 mm thick and 110 mm long.
Frequently Asked Questions about MAD130C-0200-SA-M0-AP0-35-N1:
Q: What is the significance of the 2.64 Nm/A torque constant in the MAD130C-0200-SA-M0-AP0-35-N1 motor?
A: This torque constant provides efficient power conversion, ensuring consistent torque generation for each ampere of current. It helps optimize the motor's performance, particularly in controlled industrial settings.
Q: How does the 8 V operating encoder improve the functionality of the MAD130C motor?
A: The 8 V encoder provides accurate, real-time position feedback, allowing for precise control of motor positioning. This is crucial for applications requiring high-performance tracking and monitoring.
Q: What benefits does the IP65 protection offer for the MAD130C-0200-SA-M0-AP0-35-N1 motor?
A: IP65 protection ensures that the motor is dust-tight and can withstand water jets, making it ideal for use in environments with exposure to harsh elements. This extends the motor's reliability and durability in industrial settings.
Q: Why does the MAD130C-0200-SA-M0-AP0-35-N1 induction motor use multiturn absolute encoders?
A: The multiturn encoder allows for precise positioning over multiple rotations, ensuring the motor accurately tracks its position, even after power cycles. This feature is essential for applications that require long-term reliability and minimal recalibration.
Q: What makes the MAD130C-0200-SA-M0-AP0-35-N1 induction motor suitable for high-speed operations?
A: With a peak speed of 7500 r/min and standard ball bearings, this motor can handle high-speed performance without compromising on durability. Its design ensures smooth operation in high-load, high-speed conditions.
