Product Description:

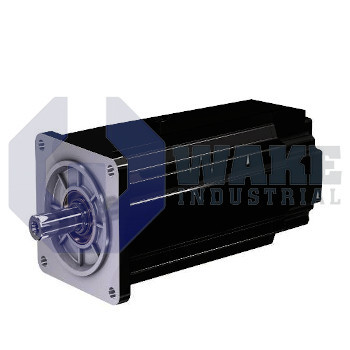

The MAD130C-0150-SA-S0-AG0-05-N1 is a servo motor manufactured by Bosch Rexroth Indramat within the MAD IndraDyn A Motors series. In automated machinery, it delivers controlled torque and speed so that positioning, indexing, and process-synchronized motion remain consistent. Its design supports flange installation on gearboxes or machine frames, which helps place the drive close to the load and reduce transmission losses.

The motor is cooled by an integrated axial fan, which forces air along the housing to maintain thermal balance when the rotor operates at its rated speed of 1500 rpm. An enclosure rating of IP65 blocks dust ingress and low-pressure water jets, allowing placement on production lines where washdowns or airborne particulates are present. Rotor position is reported by a single-turn absolute encoder that delivers 512 periods per revolution, giving the drive controller one-turn position data without a homing move. The windings use insulation class F, allowing the copper to operate at higher temperatures without insulation breakdown. Frame size 130 and frame length C provide a mid-torque form factor, while winding code 0150 matches the stator’s electrical characteristics to compatible IndraDrive amplifier tables. A vibration grade R balance limits oscillatory forces on bearings, and the standard bearing package supports the axial and radial loads expected in high-duty servo axes.

The motor uses flange mounting, keeping the pilot diameter concentric with adjoining machinery. Power and feedback leads exit through a sealed connector on the A-side of the housing, which simplifies cable routing in multi-axis cabinets. Continuous service is permitted from 0–40 °C, supporting operation in typical plant environments. The smooth shaft includes a shaft seal that retains grease and blocks coolant spray, and the motor is supplied without a holding brake, so any static load must be secured by external clamps or by drive-controlled torque when power is removed.
