MAD130B-0200-SA-S2-HP0-35-N1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911334969
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

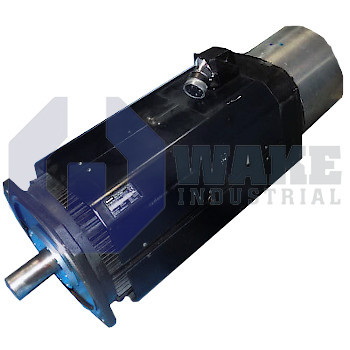

MAD130B-0200-SA-S2-HP0-35-N1 Spindle Motor manufactured by Bosch Rexroth Indramat. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD130B-0200-SA-S2-HP0-35-N1 is a Rexroth IndraDyn A series asynchronous motor with a squirrel-cage rotor. It is a product of the Bosch Rexroth Indramat company that can be combined with digital controllers from IndraDrive to create effective drive solutions. The motor is a MAD series product, and thus, is cooled via surface cooling with an attached fan. It is a size 130 motor with a length of B and a windings classification of 0200. It features a high-resolution single turn absolute encoder with 2048 increments. The output shaft has a key and is balanced with the key. The product supports the flange and foot mounting installation styles and uses standard bearings. It doesn?t come equipped with a blocking brake.
The MAD130B-0200-SA-S2-HP0-35-N1 has a rated speed of 2000 revolutions per minute. With its standard deep-groove bearings, it can reach a maximum speed of 7500 revolutions per minute. The unit has a mass of 100 kilograms. The attached fan unit is an axial blowing fan with power consumption ranging from 139 VA to 208 VA. It has a medium air voltage of 1000 m3/h and a connection voltage of 3 x 400 V +/- 15 %. The motor belongs to the IP 65 motor protection class and the F insulation class.
The product has a duty cycle time of 10 minutes. It also has a thermal time constant of 45 minutes. The rated torque of the motor is 80 Nm, while its maximum torque is 187 Nm. The MAD130B-0200-SA-S2-HP0-35-N1 asynchronous motor can be gotten with a 12-month warranty period included when purchased from our site. Our international delivery network allows us to deliver products to any address globally.
