Product Description:

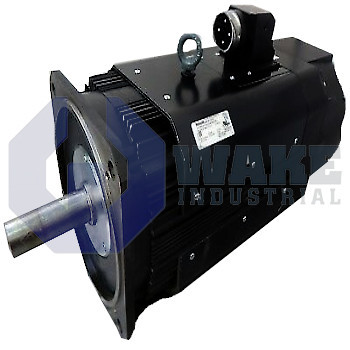

The MAD130B-0150-SA-M2-LK0-05-N1 is a servo motor built by Bosch Rexroth Indramat for the MAD IndraDyn A Motors series. As a torque source within closed-loop drive systems, the motor receives power from matched inverters and delivers regulated mechanical output to conveyor, gantry, and forming equipment. Its electromechanical design balances compact flange mounting with environmental sealing so it can be integrated directly onto machine shafts while keeping maintenance low. The motor is suited for automated axes that require repeatable motion during indexing, transfer, and synchronized production tasks.

At a rated speed of 1500 rpm, the rotor reaches its nominal operating point without exceeding thermal limits imposed by the Class F insulation system. Heat generated by copper losses is removed by an integrated axial fan, allowing continuous operation when ambient air stays within 0–40 °C. External contamination is resisted by the IP65 housing, which blocks dust ingress and water jets so the stator windings stay dry. The bearing arrangement is the standard configuration, and vibration grade R limits residual imbalance. The half-key shaft is factory balanced to reduce radial loading on flange-mounted gear stages, while winding code 0150 matches drives intended for this torque class.

The feedback system is a multiturn absolute encoder EnDat2.1 with 2048 periods, so the drive can track position across multiple revolutions without homing. Mechanical integration is simplified by flange mounting, and all power and signal conductors exit on the left through a sealed industrial connector. A half-key balanced shaft with shaft seal helps prevent lubricant escape and supports transmission components without additional machining. The motor uses frame size 130 and frame length B, which provide the core depth needed for the installed winding. Because the motor does not include a holding brake, static load retention must be handled by the drive or an external locking device. The connector layout also helps keep cable routing orderly in compact machine spaces.
