Product Description:

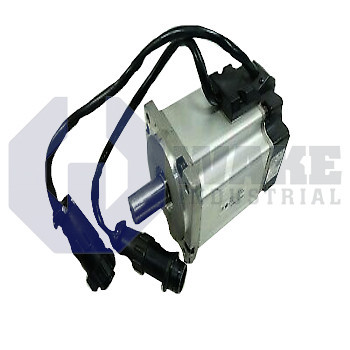

Bosch Rexroth Indramat produces the MAD100C-0250-SA-S2-BG0-05-N1 within the MAD IndraDyn A Motors series. This servo motor converts drive power from the associated inverter into accurate rotary motion for indexing tables, packaging axes, and general automation. The product type designation identifies it as a closed-loop actuator that interacts with CNC or PLC systems to regulate position and velocity over repeated cycles in industrial environments.

The motor reaches a rated speed of 2500 rpm, so gear ratios or direct-drive couplings can be selected for that operating speed. A rigid flange mounting interface simplifies alignment to machine frames, while the electrical terminals are located on the B-side housing and use a plug-in connector to shorten installation time. Cooling air is supplied by an internal axial fan, and the housing has a rating of IP65 to protect the windings from airborne dust and low-pressure fluid jets commonly found around conveyors or washdown areas. Rotor position is measured by a single-turn absolute encoder EnDat 2.1, allowing the drive to capture an absolute mechanical angle directly after power-up during normal operation.

A smooth shaft with a shaft seal helps prevent lubricant migration and supports backlash-free clamping hubs. The windings use Class F insulation so the motor can tolerate winding temperatures associated with continuous high-duty cycles, and its vibration grade R rating helps keep structural resonance within acceptable limits on compliant machine bases. A standard bearing set supports normal service life, and the 100 mm frame size with C-length stack sets the physical envelope for installation. The unit is supplied without a holding brake, operates between 0 °C and 40 °C ambient temperature, and receives power through a sealed connector that follows the same Bosch Rexroth pin arrangement used across the series.
