Product Description:

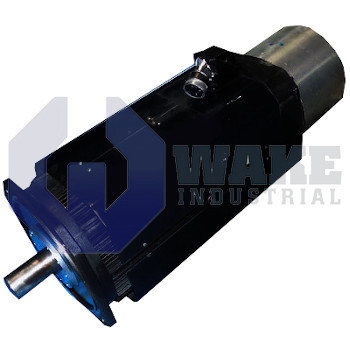

The MAD100C-0200-SA-S2-AH0-05-N2 is a servo motor manufactured by Bosch Rexroth Indramat for the MAD IndraDyn A Motors series. Built for flange installation on machine frames, it converts commanded drive current into repeatable torque for packaging lines, material-handling gantries, and other motion axes that require coordinated multi-axis control. The unit uses a 100 frame size with a C-length stator package, giving a balance between torque density and overall depth when space behind the mounting face is limited.

The motor reaches a rated speed of 2000 rpm, and winding code 0200 identifies the electromagnetic characteristics used with the matching drive pair. Feedback is supplied by a single-turn absolute encoder EnDat 2.1, enabling immediate position availability after power-up. Internal temperatures are controlled by a shaft-mounted axial fan, so the F-class insulation can operate continuously without derating. A housing sealed to IP65 keeps out dust and directed water jets, while vibration grade S and standard rolling bearings help maintain positional accuracy under dynamic loads. Electrical power and encoder leads exit on the A-side through a molded connector, which simplifies cabinet cable routing. The motor mounts by its flange pattern without additional foot hardware, and the 100 mm frame diameter helps reduce overhang on compact machines.

The MAD100C motor is supplied without a holding brake, so mechanical locking must be provided externally when zero-speed torque alone is insufficient. Motion is transferred through a smooth shaft without a shaft seal, making it suitable for environments where fluids are absent and low friction is desired. Position data are divided into 2048 periods per revolution, which supports fine velocity control through the drive’s interpolation filters. Reliable operation is specified for ambient temperatures between 0–40 °C. Within this range, the axial fan, F-class insulation, and standard bearings keep thermal conditions within normal operating limits. The frame length C and A-side connector orientation also help support compact machine layouts without rerouting conduit.
