MAD100C-0150-SA-S2-BG0-05-N1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911310899
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

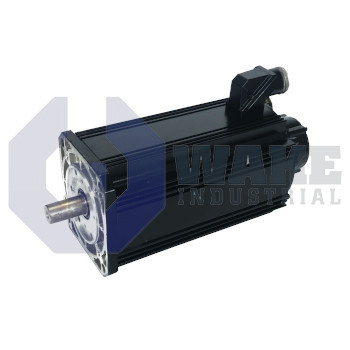

The MAD100C-0150-SA-S2-BG0-05-N1 is a 100 mm frame size synchronous AC servo motor with a rated power of 1.5 kW. Manufactured by Bosch Rexroth Indramat as part of their MAD IndraDyn A Motors series, it operates at 400V and includes self-cooling (SA). This motor has an IP65 rating and a rated torque of 9.55 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAD100C-0150-SA-S2-BG0-05-N1 Asynchronous Servo Motor delivers precise and reliable operation for industrial motion systems. This motor features a rated power of 7.5 kW. It is designed for demanding automation applications. It offers high torque and efficient speed control.
This MAD100C-0150-SA-S2-BG0-05-N1 servo motor by Rexroth Indramat provides a rated power output of 7.5 kW with a rated speed of 1500 rpm. It supports a key speed of 1000 rpm and delivers a maximum torque of 110.4 Nm. At standstill, the motor provides continuous torque of 50.0 Nm that ensures consistent load handling during halted operations. The motor's construction includes a sealing ring to prevent internal contamination and enhance durability. Its power connection uses a wire cross section of 2.5 mm² that is suitable for safe and effective current handling. The discharge capacity of the motor is specified at 8.1 nF. The motor operates within a cycle duration of 10 minutes that is ideal for short cycle industrial automation tasks. A sound pressure level of 70 dB (A) with a possible variance of +3 dB confirms compliance with noise level expectations for operational environments. The robust housing and component integration make it suitable for installations requiring high mechanical performance and reliability.
The MAD100C-0150-SA-S2-BG0-05-N1 servo motor is engineered to deliver consistent performance in automated systems. It ensures motor protection with integrated thermal sensors. These sensors respond precisely to thermal conditions. The plain output shaft of the motor allows direct coupling to driven components. The motor handles transient load increases effectively with high maximum current of 39 A. Its compact thermal profile makes it ideal for space limited installations. This motor is designed to meet precision, control and endurance requirements.
Frequently Asked Questions about MAD100C-0150-SA-S2-BG0-05-N1:
Q: How does the MAD100C-0150-SA-S2-BG0-05-N1 manage continuous torque during halted operations?
A: At standstill, the motor delivers a continuous torque of 50.0 Nm. This ensures stable load handling when the motion system is not actively rotating.
Q: Can the MAD100C-0150-SA-S2-BG0-05-N1 servo motor withstand load surges in demanding setups?
A: It supports a maximum current of 39 A to handle transient loads efficiently. This allows high torque delivery during rapid demand increases.
Q: Does the MAD100C-0150-SA-S2-BG0-05-N1 include effective protection against internal contamination?
A: The motor uses a sealing ring to block contamination during operation. This improves durability and supports long-term industrial performance.
Q: How suitable is the MAD100C-0150-SA-S2-BG0-05-N1 for compact automation setups?
A: Its compact thermal profile allows easy use in space-limited environments. The design supports efficient cooling under continuous load.
Q: What noise level can be expected from the MAD100C-0150-SA-S2-BG0-05-N1 during operation?
A: It maintains a sound pressure level of 70 dB A with a variation of plus 3 dB. This keeps noise within acceptable industrial limits.
