MAD100C-0150-SA-S2-AQ0-35-N3
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911333505
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

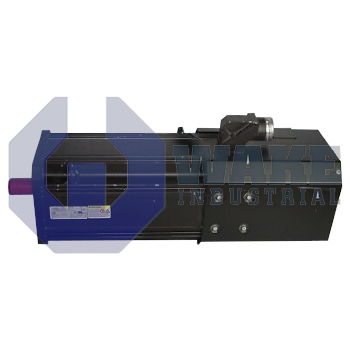

MAD100C-0150-SA-S2-AQ0-35-N3 Spindle Motor manufactured by Bosch Rexroth Indramat. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Air-cooled asynchronous motors in the MAD series are high power density motors suited for high-precision applications like machine tools, printing presses, packaging equipment, and more. Manufactured by Bosch Rexroth, the MAD100C-0150-SA-S2-AQ0-35-N3 is a robust model with a frame size of 100 with a length of C. It features a mounted axial fan that functions in surface cooling of the motor to prevent overload damage. The motor also has two PTC temperature sensors integrated into its windings to monitor and regulate temperature. This motor can be used in adverse environmental conditions since it is built to be resistant to solid and liquid contaminants such as dust and water jets per IP 65 protection requirements.
The motor comes equipped with a single-turn absolute encoder, 2048 increments. The encoder features a data memory that helps to retain all the relevant motor parameters. This unit has side A connectors where electrical cables can be connected directly to the unit. The motor is fitted for flange and foot mounting providing versatile installation options to suit different machine conditions and setups. The output shaft is a shaft with keyway, balanced with entire key suited for form-locking transmission of torques with constant direction. This model does not come with a blocking brake.
The motor has a standard bearing, type code N, suited for high speeds. The motors rated nominal speed is 1,500 min-1. The maximum speed rating is 9,000 min-1. It has a current rating of 19.7 A and a rated torque of 48.0 Nm. This motor can accommodate a maximum torque of 110.4 Nm and boasts a mass of 59 kg. It has a vibration severity class of B per DIN EN 60034-14 requirements.
