Product Description

Bosch Rexroth manufactures Asynchronous motors and drive controllers for them to the highest performance and quality standards. The brand is highly regarded for resolving challenging mechanical problems in numerous industrial fields. Bosch provides a one-year warranty on all of its products and offers international shipping.

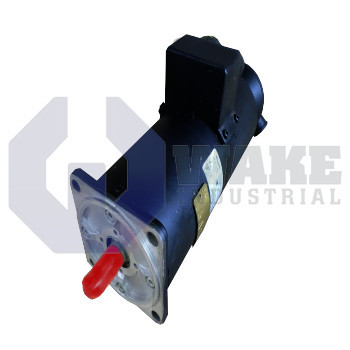

The MAC063B-0-GS-4-C/095-B-0/WI564LV rapid-response AC-powered servomotor makes the Rexroth Indramat MAC series stand out. The MAC063 AC servo motor is a subcategory of the MAC series and is rated for high cyclic load capacity which permits continuous start-stop operations at high repetition. The nominal motor speed of measured to be 3,500 revolutions per minute. A continuous standstill torque is rated as 1.5 Nm by consuming 3.6 A current. This servo motor comes in a prime black coat with (RAL 9005) and insulation classification F. The housing of the motor is tightly sealed to meet the IP65 degree of protection which permits it to be mounted at a maximum height of 1000 meters above sea level. The MAC063B AC servo motor has a permissible ambient temperature for operation in a range of 0 - 40 degree Celsius. The motor housing allows natural convection and it is optimized for free convection.

The model MAC063B-0-GS-4-C/095-B-0/WI564LV is equipped with a tacho-feedback system and includes an incremental encoder with standard mounting. The encoder ensures high-resolution operational monitoring and control. For easy access to the power connections, the motor holds side-B connectors. The centering diameter of this model is 95mm. The motor is protected from overvoltage damage with the help of a thermo switch incorporated in the motor winding and stator housing. The model (MAC063B-0-GS-4-C/095-B-0/WI564LV) comes with its user manual and complete installation instructions by Wake Industrial.
