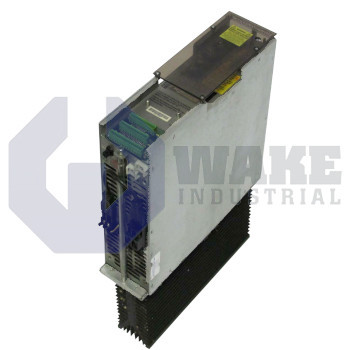

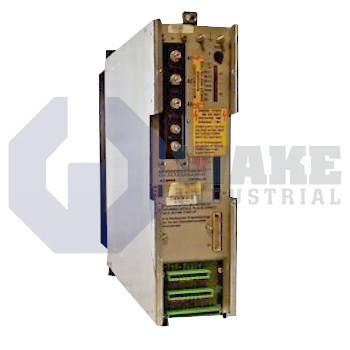

KDS 1.1-100-300-W0-220 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911234604
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
20 Seconds

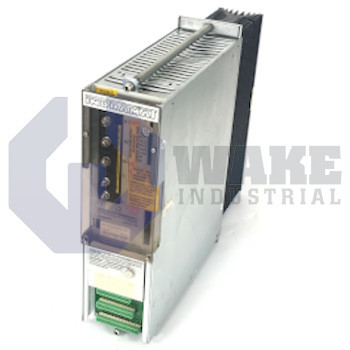

The Bosch Rexroth Indramat KDS 1.1-100-300-W0-220 is a servo-drive module from the KDS Servo Drive Modules series with a power output of 30 kW and a rated current of 100 A. This model weighs 15.2 kg, features natural convection cooling, and can operate at a maximum mounting altitude of 1000 meters. It offers IP10 protection and has a permissible ambient temperature range of 5 to 45°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat's KDS 1.1-100-300-W0-220 is a servo-drive module in the KDS Servo Drive Modules series. The device converts a shared DC link into regulated three-phase output for servo motors and fits a single slot in multiaxis automation cabinets. It bridges the motion controller and the mechanical load by delivering commanded current that maintains stable velocity and torque during production. Because it is intended for rack-based systems, the module can operate alongside other axis amplifiers that share the same power source and cabinet structure.
The amplifier supplies a continuous current of 45 A, and it can momentarily deliver a peak of 100 A to support rapid acceleration without exceeding thermal limits. Its conversion capability tops out at 30 kW, matching medium-power machinery. A nominal link circuit level of 300 V DC ±15% keeps the unit compatible with standard Indramat supply modules. Protection class IP 10 prevents ingress of large solid objects when the module is mounted inside a closed cabinet. External power dissipation is 200 W, and internal losses add another 90 W, so enclosure airflow must remove the resulting heat load. Humidity class F and insulation category C address moisture tolerance and dielectric spacing for the installed module.
Heat is removed through natural convection, although a 220 V AC, 50 to 60 Hz terminal is provided for an optional cabinet fan when additional airflow is needed. The fan connection supplements the cabinet air path rather than replacing the module's normal cooling method. The permissible ambient range is +5 to +45 °C with no derating, and installation is allowed up to 1000 m above sea level before extra cooling factors apply. Total mass is 15.2 kg, which keeps the module within a manageable handling range during cabinet assembly. With model code 1 and series designation 1, the unit follows the layout used by early KDS modules for consistent placement in a compatible drive assembly.
Frequently Asked Questions about KDS 1.1-100-300-W0-220:
Q: What is the continuous current rating of the KDS 1.1-100-300-W0-220 servo drive?
A: The KDS 1.1-100-300-W0-220 servo drive module provides a continuous current of 45 A, supporting stable long-term operation.
Q: What cooling method is used in the KDS 1.1-100-300-W0-220 servo drive module?
A: This model is cooled by natural convection, operating without the need for external fans or forced cooling systems.
Q: What is the maximum power output of the KDS 1.1-100-300-W0-220?
A: The unit can output up to 30 kW of power, suitable for demanding industrial applications.
Q: What is the supported link circuit DC voltage for the KDS 1.1-100-300-W0-220?
A: This servo drive supports a link circuit DC voltage of 300 V, with a tolerance of plus or minus 15%.
Q: What ambient temperature range can the KDS 1.1-100-300-W0-220 handle during operation?
A: The permissible ambient temperature range for this model is +5 to +45°C, supporting typical industrial environments.
