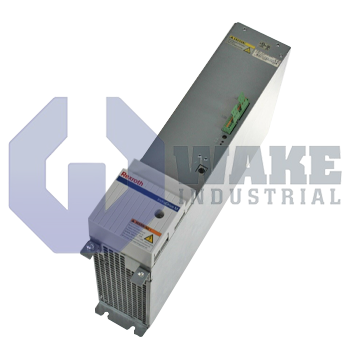

HMF01.1N-S0K1-M1200-N-480-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911325701
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat HMF01.1N-S0K1-M1200-N-480-NNNN is part of the HMF Motor Filters series and features 3 single-phase chokes for use on the motor output side. It has an IP00 degree of protection, is designed for vertical mounting, and provides overvoltage reduction with a peak overload capability of 165 percent. This motor filter supports a maximum operating frequency of 100 Hz, is suitable for 3-phase AC systems, and includes a touch guard for safety.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat produces the HMF01.1N-S0K1-M1200-N-480-NNNN, a passive line component in the HMF Motor Filters series. The module is installed between a servo inverter and its matched motor to attenuate high-frequency switching artifacts, limit voltage overshoot, and protect motor insulation in automated machinery. Through controlled impedance, it smooths the current waveform that reaches the motor terminals, helping meet electromagnetic compatibility targets and extend the operating life of connected rotating equipment.
It contains 3 single-phase chokes arranged in a star configuration, and each choke inserts series inductance on one phase to reduce the du/dt caused by PWM switching. The filter is wired on the motor output side of an IndraDrive amplifier, so no additional connections to the mains are required. Compatibility with three-phase AC drive systems ensures equal treatment of all phases and balanced voltage distribution. The magnetic circuit is sized for continuous operation up to 100 Hz fundamental frequency, allowing full-speed service for most industrial motors driven by vector control. During transient current surges, the inductive elements withstand a peak thermal and magnetic load of 165% without saturation, preserving voltage filtering performance while acceleration, braking, or regeneration peaks occur.
For enclosure layout, the unit is delivered as an open assembly rated at IP00; therefore, it must be placed inside a grounded control cabinet to avoid accidental contact with energized conductors. The preferred mounting orientation is vertical, which promotes unrestricted airflow along the laminated cores and helps maintain winding temperature within limits. Mechanical integrity during transport and machine shock is verified to 15 g, so the filter remains electrically stable when mounted near stamping presses or gantry axes. An integral touch guard covers the terminal block, providing an additional layer of protection during routine inspection and connection checks.
Frequently Asked Questions about HMF01.1N-S0K1-M1200-N-480-NNNN:
Q: What type of choke configuration does the HMF01.1N-S0K1-M1200-N-480-NNNN filter have?
A: The HMF01.1N-S0K1-M1200-N-480-NNNN filter uses 3 single-phase chokes.
Q: Which side should the HMF01.1N-S0K1-M1200-N-480-NNNN filter be connected to?
A: This filter is designed for connection on the motor output side.
Q: What is the primary function of the HMF01.1N-S0K1-M1200-N-480-NNNN motor filter?
A: The HMF01.1N-S0K1-M1200-N-480-NNNN achieves overvoltage reduction as its primary filter function.
Q: What level of environmental protection does the HMF01.1N-S0K1-M1200-N-480-NNNN provide?
A: Its degree of protection is IP00, meaning it does not offer protection against solid objects or liquids.
Q: What is the peak overload rating for the HMF01.1N-S0K1-M1200-N-480-NNNN filter?
A: This model can operate with a peak overload of up to 165%.
