HMD01.1N-W0036

  • Rated 4.6 (28 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911298766
  • Stock: In-Stock, Ships 3-5 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

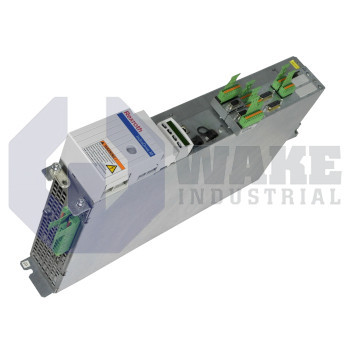

The HMD01.1N-W0036 Drive Controller is manufactured by Rexroth Indramat Bosch. This drive controller is Not Equipped with a power supply, has a peak current of 36 and a nominal voltage of DC 700 V. This HMD drive controller is cooled by using Internal Air.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

HMD01.1N-W0036

  • Rated 4.6 (28 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911298766
  • Stock: In-Stock, Ships 3-5 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The HMD01.1N-W0036 Drive Controller is manufactured by Rexroth Indramat Bosch. This drive controller is Not Equipped with a power supply, has a peak current of 36 and a nominal voltage of DC 700 V. This HMD drive controller is cooled by using Internal Air.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a HMD01.1N-W0036 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The HMD01.1N-W0036 power section must be used only with HMV and other such DC power supplies from the manufacturer. The module from Bosch Rexroth is intended for operation with the IndraDrive M range of drive controllers. This product should not be mounted or used if it is found to be damaged or faulty. It has a control section inside. The unit has an effective peak current rating of 36A at 4kHz frequency. The surface of the device can experience temperatures of more than 60°C during operation. The section has a pollution degree of 2. It has a maximum ambient operating temperature of 40°C with nominal data.

The field wiring material of the power section is made of copper. The product can be connected to several types of synchronous motors from the manufacturer. This connection must be done only using the manufacturer’s cables. The power supply used with the module is capable of rendering the rated input current. When the power supply and the power section are used in combination, it is mandatory to include a mains choke and a mains filter. The X5.1 and X5.2 connectors of the power section are used for connecting the motor. The coding sections of the inverter outputs are available at Pin 2 and Pin 1 respectively of these connectors.

The power section must be de-energized before commencing work on live parts. The product has an upper DC bus voltage limit of 900V +/-2.5% and a maximum output current rating of 23.9A at 8kHz. It should be capable of enduring the voltage load when standard motors are used. The blower that is used in the power section plays a key role in influencing the power consumption of the device. The L+ and L- terminals can be used to connect the DC bus using M6 screws and contact rails. The unit is backed by a Wake Industrial warranty for one year and can be shipped globally.

  • HMD011NW0036
  • HMD01 1N W0036
  • hmd01.1n-w0036

HMD01.1N-W0036 Technical Specifications

Cooling Mode: Internal Air
Power supply unit: Absent
maximum output current: 36A
Rated current: 20A
Power dessipation : 2×205W
Rated current at electric rotational frequency 0Hz: 13.7A
Nominal Y-capacitance : 2*68nF
Control Voltage : 24V
Weight: 5.27kg
protection class: IP20

Frequently Asked Questions about HMD01.1N-W0036


Q: How can operators protect the HMD01.1N-W0036 from damage from electrostatic charges?

A: The HMD01.1N-W0036 is sensitive to electrostatic charge and can be damaged on exposure to this charge. To protect the controller, objects coming incontact with the controller must be discharged first by means of grounding.

Q: What tests should be carried out on the HMD01.1N-W0036 after delivery?

A: The HMD01.1N-W0036 is already tested and certified to meet international standards before it is delivered. Operators shoul avoid the extreme testing of the controller as this can damage the device.

Q: Can the HMD01.1N-W0036 withstand harsh environmental conditions?

A: The housing of the HMD01.1N-W0036 is only designed to prevent the penetration of solid materials with a diamater larger than 12 millimeters. The controller should not be used in harsh conditions and should always be installed in an external control cabinet that can meet at least the IP54 protection.

Q: What are the types of electrical motors compatible with the HMD01.1N-W0036 controller?

A: The HMD01.1N-W0036 controller can be used with synchronous and asynchronuous motors manufactured by Rexroth Indramat. Example of compatible motor designs include the MSK, MHD, and MS2N motor series.

Q: How long will it take the HMD01.1N-W0036 to be delivered to me?

A: Normally, the HMD01.1N-W0036 is shipped within 48 hours after the order has been confirmed. Delivery is handled by FedEx, UPS and DHL. The time the controller gets to you depends on your location.
