HDS05.2-W300N-HT23-01-FW

  • Rated 4.3 (25 total ratings)
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

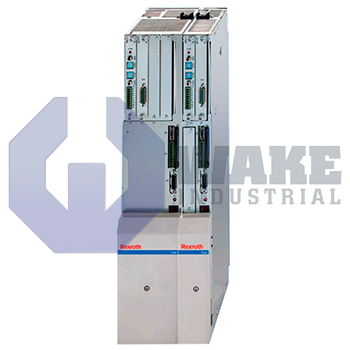

The HDS05.2-W300N-HT23-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 300A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

HDS05.2-W300N-HT23-01-FW

  • Rated 4.3 (25 total ratings)
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
The HDS05.2-W300N-HT23-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 300A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a HDS05.2-W300N-HT23-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The HDS05.2-W300N-HT23-01-FW is a modular drive controller. It is part of HDS series from Rexroth Indramat. The modular structure of the controller enables adaptation to multiple customer requirements. Slots are available on the HDS05.2-W300N-HT23-01-FW which can be used for installation of compatible plug-in modules. Slot U1 is fixed for the command communication interface which in the case of the HDS05.2-W300N-HT23-01-FW is SERCOS. Slot U5 is fixed for the software module which contains the firmware for the controller. Slots U2 to U4 are available for the installation of optional plug in modules. Function ID code for the HDS05.2-W300N-HT23-01-FW is 23 and is version of function ID is 01. Firmware for all HDS series drive controllers needs to be ordered separately. The HDS05.2-W300N-HT23-01-FW is installed inside a chassis from the DIAX04 drive family.

Each DIAX04 chassis can house multiple drive controllers. A single HVR or HVE series power supply module installed inside the DIAX04 chassis can provide power to all the drive controllers. Therefore each DIAX04 chassis needs only a single connection to the main electrical supply. Peak and nominal current rating for the HDS05.2-W300N-HT23-01-FW is 300 Amps. Permissible ambient temperature range recommended by Rexroth for the HDS05.2-W300N- HT23-01-FW with rated data is 5 to 45 degrees Celsius. The drive controller includes an internal blower to aid air circulation. Rexroth also recommends minimum spacing requirements around a mounted HDS05.2-W300N-HT23-01-FW for smooth air flow: these are 100 millimeters on the bottom side, 80 millimeters on the top side and 90 millimeters on the front side of the installed controller. The HDS05.2-W300N-HT23-01-FW is compatible with Rexroth 1MB, 2AD and MKD series synchronous motors. Installation and operation of the controller should be carried out by experienced personnel. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

HDS05.2-W300N-HT23-01-FW Documents

  • HDS052W300NHT2301FW
  • hds05.2-w300n-ht23-01-fw
  • HDS05 2 W300N HT23 01 FW

HDS05.2-W300N-HT23-01-FW Technical Specifications

Controller Family: DIAX04
Rated Current: 300A
Cooling Type: Air, internal (with built-in blower)
Command Communication: SERCOS Interface
