HDS04.2-W200N-HS37-01-FW

  • Rated 4.5 (35 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships Fast
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

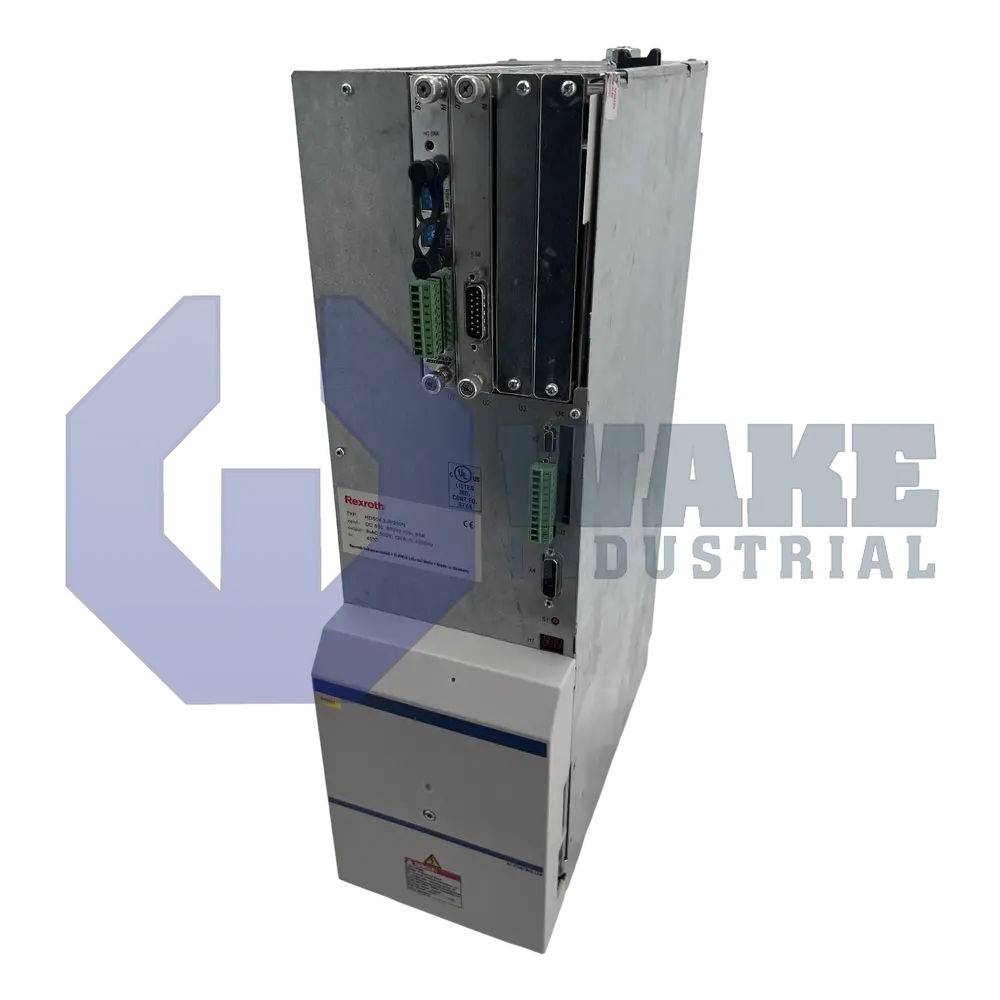

The HDS04.2-W200N-HS37-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 200A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

HDS04.2-W200N-HS37-01-FW

  • Rated 4.5 (35 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships Fast
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The HDS04.2-W200N-HS37-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 200A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a HDS04.2-W200N-HS37-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The HDS04.2-W200N-HS37-01-FW drive controller belongs to the DIAX04 controller family of such devices from Bosch Rexroth. The controller uses a SERCOS interface for command communication. It is widely used in handling, packaging, textile and printing machines. The product supports the use of an additional HZK capacitor module if there are a large number of start-stop cycles.  The signal and control cables of this device must not be routed near high-voltage supply lines, magnetic fields or high-frequency units. The maximum length of the cable used to connect to the motor should not exceed 75m. The motor connection must be made at the bottom of the controller. The drive controller comes with a one year Wake Industrial warranty.

The device can be used as both main and servo drives. The mounting panel on which the unit is mounted should not have any finish or paint on it within the mounting area. This helps to establish good contact with the mounting rails and mounting panel. The type plate of the basic unit is present at the top of the controller while the type plate of the entire configuration is located near the plug-in modules. The configured drive controller has a function ID code of 37. It must be stored and transported between a temperature range of -30°C and +85°C. It has a maximum permissible relative humidity of 95% and a maximum permissible absolute humidity of 25g/m3.

The drive controller has a power loss of 800W with continuous current. It weighs 19g. The unit has a frequency range of 20 to 500Hz due to vibration distortion according to IEC 68-2-36 specifications. The device must be fastened inside the control cabinet using a mounting rail of type designation SUP-M01-HD. The product is prone to damage if it is mounted in any orientation other than a vertical one. There must be a minimum clearance of 100mm between the control cabinet and the controller. The HDS04.2-W200N-HS37-01-FW can be delivered to any address worldwide.

HDS04.2-W200N-HS37-01-FW Documents

  • HDS042W200NHS3701FW
  • HDS04 2 W200N HS37 01 FW
  • hds04.2-w200n-hs37-01-fw

HDS04.2-W200N-HS37-01-FW Technical Specifications

Command Communication: Sercos
Continuous current (4kHz/kHz): 120/80A
Protection class : IP10
Firmware: To be ordered separately
Weight: 19kg
Rated current: 200A
Peak Current: 200A
Power consumption for signal processing: 30W
Cooling : Internal air blower
Insulation classification: class C

Frequently Asked Questions about HDS04.2-W200N-HS37-01-FW


Q: How can operators monitor the operator status of the HDS04.2-W200N-HS37-01-FW in real time?

A: The HDS04.2-W200N-HS37-01-FW features the H1 status display which is in front of the control panel. The status display diaplays special codes and messages that the drive controller can easily interprete and use to minitor the operational status of the controller.

Q: What is the X1 connector on the HDS04.2-W200N-HS37-01-FW used for?

A: The HDS04.2-W200N-HS37-01-FW drive controller recieves the power it requires for operation through the X1 cibbector. The connection should start at the supply unit and run to the drive controller with the help of the falt ribbon cable integrated into the units.

Q: What is the X2 connector on the HDS04.2-W200N-HS37-01-FW used for?

A: The X2 connector is the serial interface of the HDS04.2-W200N-HS37-01-FW. It supports the communication of the controller with a PC with the hep of a suitable software. It can be operated either as RS 232 or RS 485.

Q: Can the HDS04.2-W200N-HS37-01-FW withstand vibration without damage?

A: The HDS04.2-W200N-HS37-01-FW should not be exposed to continuous vibrations. During transportations, short-absorbing surpports should be used to protect the controller from vibration.

Q: What type of mounting raid should be used with the HDS04.2-W200N-HS37-01-FW controller?

A: The mounting rail with type designation SUP-MO1-HD (Part Number 271274) should be used to fasten the drive controller into the control cabinet. The mounting rail is only available in a length of 750mm and must be shortened as needed on delivery.
