HDS03.2-W100N-HS28-01-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911290210

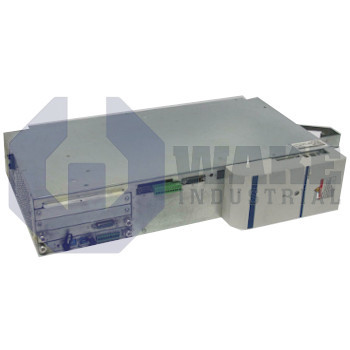

The HDS03.2-W100N-HS28-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 100A. This HDS controller has a Sercos Command Communication, and the Controller Family is DIAX04.

HDS03.2-W100N-HS28-01-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911290210
The HDS03.2-W100N-HS28-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 100A. This HDS controller has a Sercos Command Communication, and the Controller Family is DIAX04.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a HDS03.2-W100N-HS28-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Rexroth Indramat is an industrial leader in developing and manufacturing electric drives, controls and hydraulics, and gear technology. The company is renowned for its quality components and systems. The HDS series is Rexroth Indramat’s 2nd generation drive controllers.

HDS drive controllers are reliable, durable, and robust. The HDS03.2-W100N-HS28-01-FW is part of the HDS family. It is a 3-line 2nd version controller with internal air cooling. While installing, it must be ensured that there is sufficient room for cooling. This controller has a current rating of 100 A and has no other versions. The HDS03.2-W100N-HS28-01-FW belongs to the DIAX04 controller family and has a SERCOS interface for command communication. The function ID code for this controller is 28 with the first version. This drive controller’s firmware must be ordered as a separate subitem. The HDS03.2-W100N-HS28-01-FW has a rated and peak current of 100 W. It weighs approximately 11 kg and has a power consumption of 25 W. This drive controller has a modular structure and it can be adapted to its respective function by outfitting it with different plug-in modules.

It must be ensured that the HDS03.2-W100N-HS28-01-FW is operated in permissible temperatures to avoid overheating of the unit. The recommended operational temperature is between 5˚C to 45˚C with rated data. For a de-rated data, this drive controller can be operated to a maximum 55˚C. The HDS03.2-W100N-HS28-01-FW has an IP 10 rated enclosure. The enclosure provides no protection against dust or water. For proper functioning, this controller must be installed in a location with no dust or water vapors in the air. The HDS03.2-W100N-HS28-01-FW has an insulation classification of ‘C’ as per DIN VDE 0110. The HDS03.2-W100N-HS28-01-FW can be shipped to any address worldwide with a one-year warranty period from Wake Industrial.

HDS03.2-W100N-HS28-01-FW Documents

  • HDS032W100NHS2801FW
  • HDS03 2 W100N HS28 01 FW
  • hds03.2-w100n-hs28-01-fw

HDS03.2-W100N-HS28-01-FW Technical Specifications

Command Communication: Sercos
Controller Family: DIAX04
Cooling: Internal Blower
Rated Current: 100A
