HDS03.2-W075N-HS11-01-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911190078
  • Stock: Call for Quote

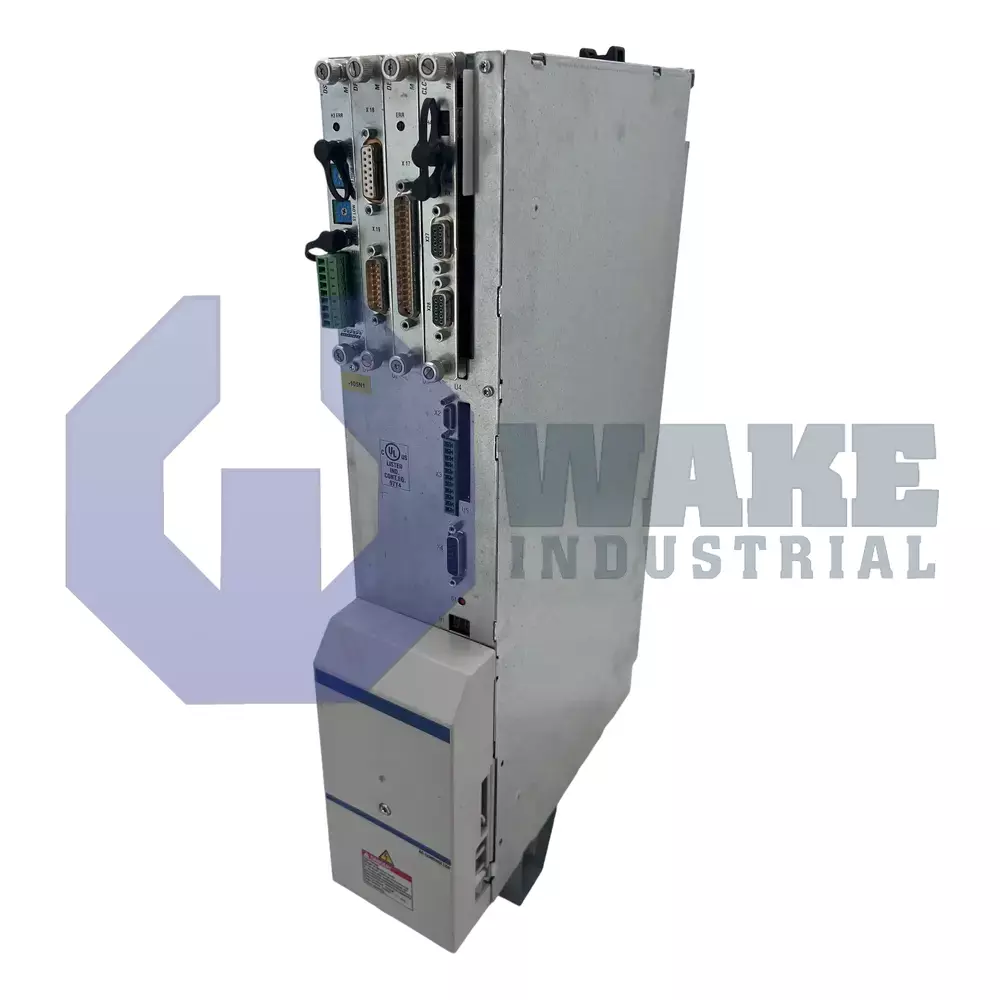

The HDS03.2-W075N-HS11-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 75A. This HDS controller has a Sercos Command Communication, and the Controller Family is DIAX04.

HDS03.2-W075N-HS11-01-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911190078
  • Stock: Call for Quote
The HDS03.2-W075N-HS11-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 75A. This HDS controller has a Sercos Command Communication, and the Controller Family is DIAX04.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a HDS03.2-W075N-HS11-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

As a company, one of the things Bosch Rexroth is interested in most is automation technology. This is why they build gears and controllers for both individual and industrial use. The HDS03.2-W075N-HS11-01-FW drive part is from the second generation of HDD and HDS Drive controllers by Bosch Rexroth. The type code HDS03.2-W075N-HS11-01-FW can be divided into both basic unit and configuration number with the HDS03.2-W075N being the basic unit and the HS11-01-FW being the configuration number. It is from the second version of the HDS product group of 75A rated current and the DIAX04 controller family. Also, the cooling air is internal with a built-in blower.

The HDS03.2-W075N-HS11-01-FW has a maximum ambient temperature with nominal data of 45◦C, the maximum ambient temperature with reduced nominal data of 55◦C, a device weight of 11kg and a device width of 100mm. The rated power consumption, control voltage input without holding brake, without control section at UN3 = DC 24 V (UL) is 25W with the maximum input current being 37 A and the maximum output current at 40 A.  Furthermore, the power dissipation at continuous current and continuous DC bus power respectively plus the dissipation of braking resistor is 220 W while for the field wiring material, only a class 1 wire or its equivalent can be used.

The HDS03.2-W075N-HS11-01-FW drive controller is also equipped with two ground connections to the supply module at the back wall of the unit and the mounting rails as well as, in front of the unit where the grounding bracket is and when the drive motor is connected, the connections TM+ and TM- that are very much equipped with dependent resistors are usually used to evaluate its temperature. The HDS03.2-W075N-HS11-01-FW can be shipped to any address worldwide with a one-year warranty period from Wake Industrial.

HDS03.2-W075N-HS11-01-FW Documents

  • HDS032W075NHS1101FW
  • HDS03 2 W075N HS11 01 FW
  • hds03.2-w075n-hs11-01-fw

HDS03.2-W075N-HS11-01-FW Technical Specifications

Command Communication: Sercos
Controller Family: DIAX04
Cooling: Internal Blower
Rated Current: 75A
