HDS03.2-W075N-HS02-02-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911190255

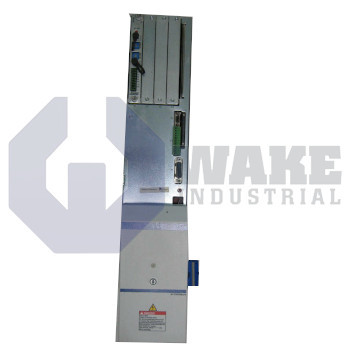

The HDS03.2-W075N-HS02-02-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 75A. This HDS controller has a Sercos Command Communication, and the Controller Family is DIAX04.

HDS03.2-W075N-HS02-02-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911190255
The HDS03.2-W075N-HS02-02-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 75A. This HDS controller has a Sercos Command Communication, and the Controller Family is DIAX04.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a HDS03.2-W075N-HS02-02-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth provides a wide range of motion control solutions for its clients. The solution packages also include customer-specific products and software. This has allowed the company to establish itself as a market leader in the area of automation.

The HDS03.2-W075N-HS02-02-FW is a rapid response drive controller produced by the company. It is used for advanced servo applications in areas like robotics, printing, packaging, machine handling, and metal machining.  The system has a mass of 11 kg and can be used as the main spindle driver in addition to servo applications. The drive controller requires a 20 W power supply for operation and can operate in a temperature range of 5 ᵒC to 45 ᵒC. The system comes as a basic unit in which slots are provided for various modules like software module, command & communications module, and additional plug-in modules. The system’s firmware and drive parameter settings are stored in the software module. The software module can be used with other drive controllers if the existing drive controller must be replaced.

The HDS03.2-W075N-HS02-02-FW provides options for connecting incremental measuring systems with a square wave signal output. This is done by a DEF01.1M type additional interface cards. Similarly, a DAG01.2M interface card is provided that connects an SSI signal output with multi-turn absolute encoders. The system has a continuous current of 40 A and can be stored in a -30 ᵒ C to 85 ᵒC temperature range. The ideal conditions for the drive controller’s operation are in a 1000 m elevation range. This model has an IP 10 standard protection rating and comes with SERCOS and ANALOG type interface modules. As a whole, the HDS03.2-W075N-HS02-02-FW proves to be an effective subsystem for motion control of industrial motors. The HDS03.2-W075N-HS02-02-FW can be shipped to any address worldwide with a one-year warranty period from Wake Industrial.

HDS03.2-W075N-HS02-02-FW Documents

  • HDS032W075NHS0202FW
  • HDS03 2 W075N HS02 02 FW
  • hds03.2-w075n-hs02-02-fw

HDS03.2-W075N-HS02-02-FW Technical Specifications

Command Communication: Sercos
Controller Family: DIAX04
Cooling: Internal Blower
Rated Current: 75A
