Product Description

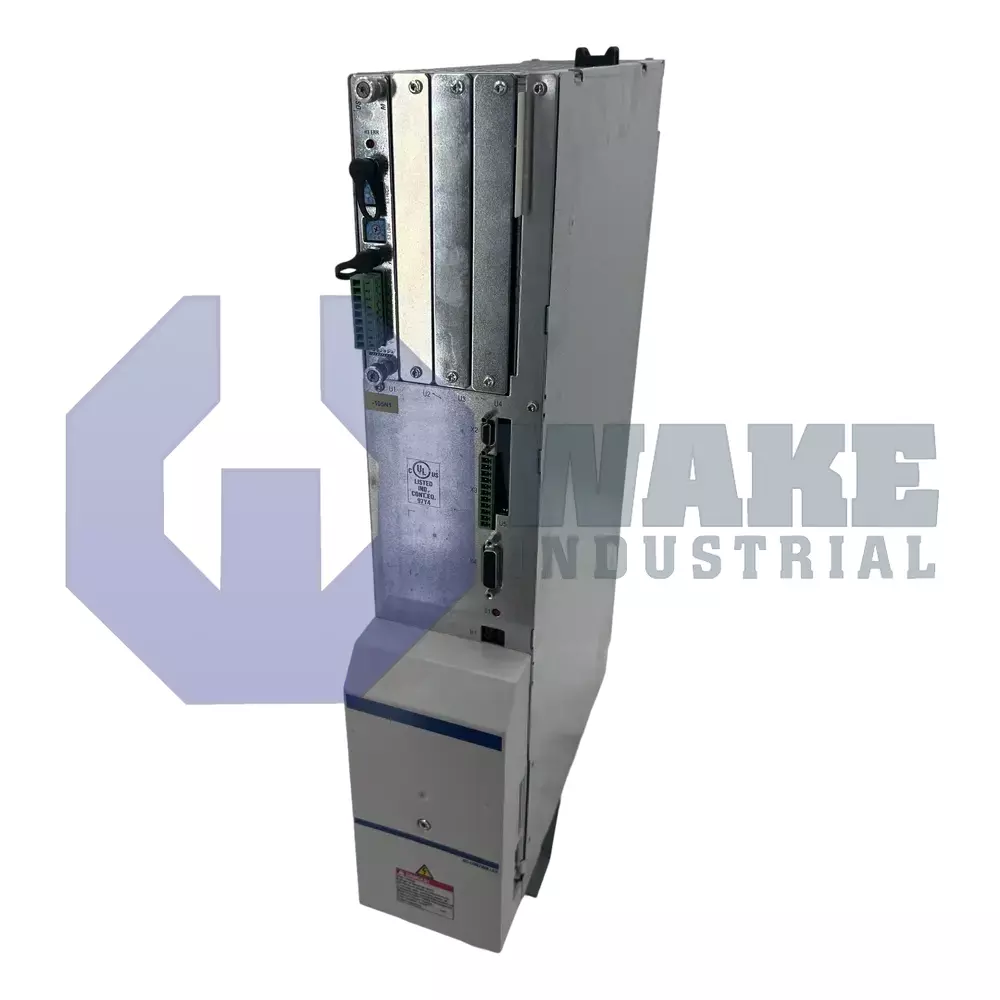

The HDS03.1-W075N-HS12-01-FW is included in the HDS Drive Controllers series and is made by Bosch Rexroth Indramat. Pairing up with 1MB motors, 2AD motors, MHD motors, or MKD motors, this family of drive controllers is an ideal fit for the robotics, printing, textile, and packaging industries. These reliable and strong devices can either be used as main drives or servos.

The HDS03.1-W075N-HS12-01-FW drive controller features rated and peak currents equal to 75 Amperes, and maximum continuous current equal to 40 Amperes at 4 kHz (this value drops to 30 Amperes for 8 kHz of the power section clock frequency). When operating at these continuous current levels, the power dissipation is 220 W. Featuring a Cooling Type of Air, internal (with built-in blower), the safe operating temperature range is always assured. This device is identified with a line number equal to 3 and a version number equal to 1. The identifier segment “HS12-01” means that this device pertains to DIAX04 Controller family, it features the SERCOS Interface command communication, its function ID code is 12 and its version of function ID is 1. Weighing 11 kg, this is a strong and robust module of the HDS Drive Controller series.

The HDS03.1-W075N-HS12-01-FW has an IP10 casing and it can be installed up to 1000 meters of altitude (regarding the sea level). Operating the device within 5 to 45 degrees Celsius range ensures a safe operating temperature. This drive controller should never be operated above 55 degrees Celsius, or its correct functioning won’t be guaranteed. The temperature range for storage and transportation is wider, corresponding to -30 to 85 degrees Celsius. It is mandatory that the firmware module is ordered as a separate subitem (as stated by the “FW” indicator). The software module is essential to execute the necessary functions and it the stores drive controller’s firmware and functioning parameters. The HDS03.1-W075N-HS12-01-FW can be shipped to any address worldwide with a one-year warranty period from Wake Industrial.
