HDS02.2-W040N-HS37-01-FW

  • Rated 4.6 (10 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships Fast
  • Call for Expedited Shipping and Product Condition Options
The HDS02.2-W040N-HS37-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 40A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

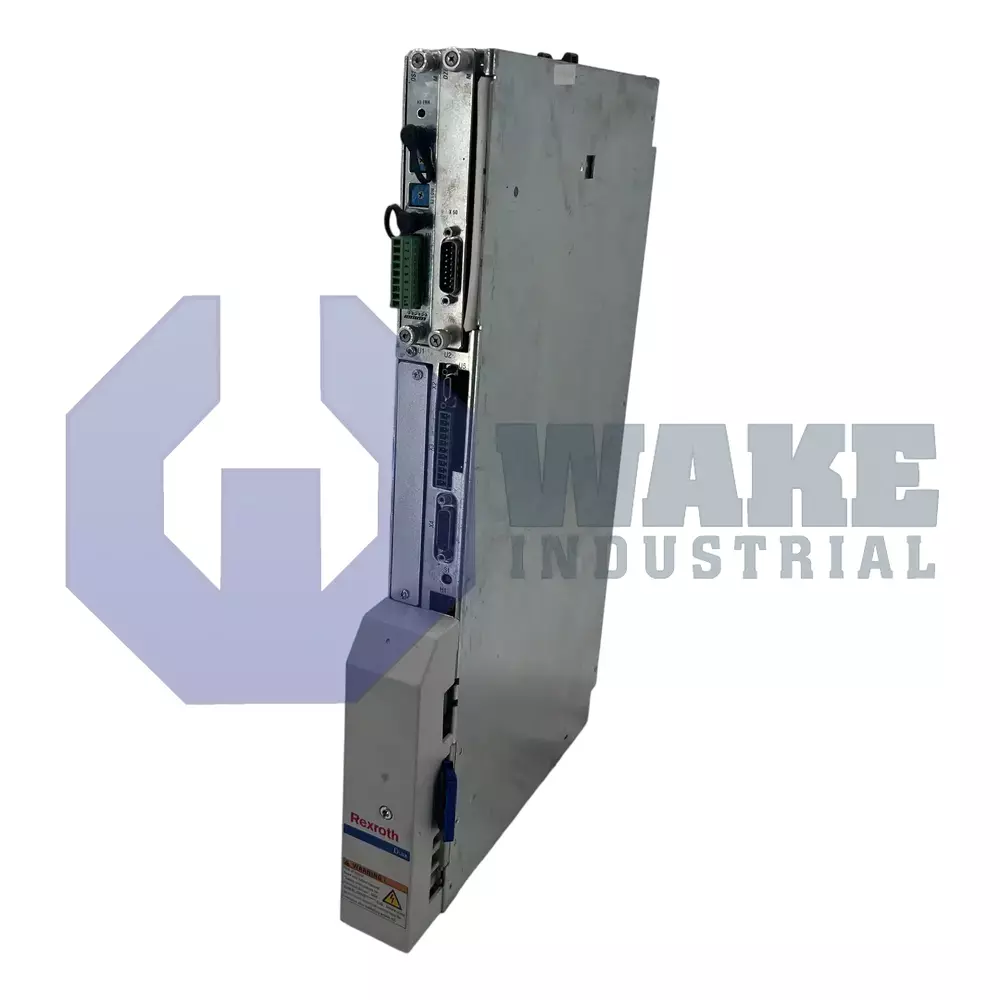

✓ In-Stock! HDS02.2-W040N-HS37-01-FW | Rexroth, Bosch, Indramat HDS Drive Series | Image

HDS02.2-W040N-HS37-01-FW

  • Rated 4.6 (10 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships Fast
  • Call for Expedited Shipping and Product Condition Options
The HDS02.2-W040N-HS37-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 40A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a HDS02.2-W040N-HS37-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The Rexroth Indramat HDS02.2-W040N-HS37-01-FW is a drive controller (second generation) which is meant for use in DIAX04 systems. Multiple HDS controllers such as the HDS02.2-W040N-HS37-01-FW and HDD family controllers can be installed in the same DIAX04 chassis for control for AC motors. A single HVE / HVR power supply unit installed in the same chassis can provide power to all installed drive controllers. Performance specifications of the controller include 40 Amps rated current, 40 Amps peak current, 20 Amps current at 4 kilohertz power section frequency and 15 Amps current at 8 kilohertz power section frequency. When the controller is operating at 40 Amps continuous current it incurs 125 Watts power loss. For optimal operation the controller requires maximum 1000 meters installation altitude and 5 to 45 degrees Celsius ambient temperature.

Weight and dimensions of the HDS02.2-W040N-HS37-01-FW are 6.5 kilograms and 498 x 50 x 265 millimeters respectively. Firmware for the controller, which is located in the software module, need to be ordered as a separate subposition. The version function code is 01 and the function ID code for the HDS02.2-W040N-HS37-01-FW is 37. The controller has a modular architecture. The controller basic unit includes a factory installed SERCOS command communication module. Integrated blower is also available on the controller for facilitation of convection cooling. For smooth air flow Rexroth recommends minimum clearance of 80 millimeters above the HDS02.2-W040N-HS37-01-FW and 100 millimeters below the controller. Furthermore a clearance of 90 millimeters is also recommended in front of the mounted HDS02.2-W040N-HS37-01-FW during operation. To prevent injury and equipment damage, Rexroth recommends that the installation and maintenance of the controller should be carried out by trained personnel only. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

HDS02.2-W040N-HS37-01-FW Documents

  • HDS022W040NHS3701FW
  • hds02.2-w040n-hs37-01-fw
  • HDS02 2 W040N HS37 01 FW

HDS02.2-W040N-HS37-01-FW Technical Specifications

Product Group: HDS
Controller Family: DIAX04
Line: 2
Version: 2
Cooling Type: Air, internal (with built-in blower)
Rated Current: 40 A
Other Versions: None
Command Communication: SERCOS Interface
Function ID Code: 37
