HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911326231
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
5 Seconds

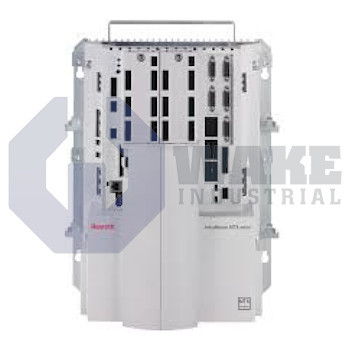

The Bosch Rexroth Indramat HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW is a multi-axis drive controller in the HCT Multi Axis Drive Controllers series with a rated power of 20 kW and three axes. It features air cooling with an integrated blower, IP20 protection class, and supports an input voltage from 200 to 500 V AC with a voltage tolerance of plus or minus 10%. The drive controller includes 64 MB CNC user memory, 2 MB PLC program memory, and local I/O of 32 inputs and 16 outputs.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW belongs to the HCT Multi Axis Drive Controllers series manufactured by Bosch Rexroth Indramat. This multi-axis drive controller supplies coordinated power and motion commands to several servo and spindle drives, making it a central element in automated machining and assembly lines where synchronized positioning is required. By combining CNC control and drive coordination in one platform, it supports linked axis movement, contouring, and timed spindle operation across complex machine sequences. The unit is part of product line 02 in the HCT family.
The unit supports 3 axes, and each axis is routed through two independent channels so motion blocks can run concurrently, with four interpolating axes available per channel for contouring moves. The controller operates from a three-phase supply of 3 × AC 200–500 V, and the input can vary by ±10% without derating. Its power stage provides 20 kW of continuous output and is cleared for a fault current of 42 000 A rms. An integrated blower removes heat while the enclosure maintains an IP 20 rating. The feeding-type power module also forwards DC bus energy to downstream inverters, and version 1 includes two spindle interfaces for applications that use a main spindle and an auxiliary spindle under common timing.
The embedded automation platform includes 64 MB of CNC user memory for part programs, while 2 MB is reserved for PLC logic. Static data such as system parameters are stored in 44 MB of nonvolatile memory, and a standard CompactFlash slot provides removable data storage for machine files. For communication, the controller provides 8192 B In / 8192 B Out of deterministic fieldbus space, along with 8 digital inputs and 8 digital outputs for sub-millisecond reactions and 32 local inputs with 16 outputs for cabinet wiring. Motion and I/O cycles are managed by an Embedded PC, LX 800 master, and it can execute two PLC tasks in parallel. This arrangement keeps program handling, fieldbus exchange, and local signal processing on the same control platform during machine operation.
Frequently Asked Questions about HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW:
Q: How many axes can the HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW control?
A: The HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW controller is designed for managing 3 axes.
Q: What is the rated power of the HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW controller?
A: This model features a rated power output of 20 kW for demanding multi-axis drive applications.
Q: What input voltage is supported by the HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW controller?
A: The controller operates on a 3-phase AC input voltage range of 200 to 500 V with a voltage tolerance of ±10%.
Q: What type of cooling does the HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW controller use?
A: This model uses air cooling with an internal integrated blower to maintain operating temperature.
Q: What is the protection class of the HCT02.1E-W0020-A-03-B-L8-2N-NN-NN-NN-FW controller?
A: The protection class of this controller is IP 20, offering basic protection against solid objects.
