HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911335553
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
53 Seconds
The Bosch Rexroth Indramat HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW is part of the HCQ Micro Controls series and has a rated power of 25 kW with a mains connecting voltage of 3 x AC 200 to 500 V. It features a feeding power supply type, an embedded PC with LX 800 communication, and an integrated SERCOS III master. This unit includes 32 digital inputs, 16 digital outputs, five encoder interfaces, and has a mass of 11.70 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

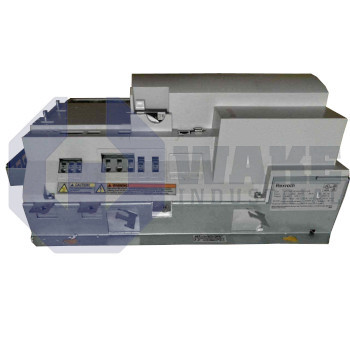

The HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW is a power supply unit manufactured by Bosch Rexroth Indramat within the HCQ Micro Controls series. It conditions three-phase mains power for drive and I/O racks, allowing coordinated motion and logic functions in compact automation cells. By combining power conversion, protection, and communication in one enclosure, it simplifies cabinet layout and reduces wiring in multi-axis systems. This arrangement supports installations where drive supply and control hardware are placed in the same cabinet.
The supply delivers a rated output of 25 kW from an input range of 3 x AC 200...500 V with a tolerance of ±10%. At full load, the UL-listed input current reaches 44.0 A, and the supported line frequency is 50...60 Hz. The circuitry withstands 42,000 A RMS fault current while providing an adjustable output of 3 x AC 0...500 V. Cooling is provided by an internal blower, and the housing has an IP 20 rating. The enclosure measures 455 mm high, 320 mm wide, and 191 mm deep, with a mass of 11.70 kg. The unit is part of Line 02, uses design 1, has a Basic control section, and comes without either equipment option.
The control layer uses an Embedded PC LX 800 and communicates with field devices through the integrated SERCOS III master. For machine sensing, the controller provides 32 digital inputs, 16 digital outputs, five encoder interfaces, and four probe channels for deterministic capture of position and process events. Upstream branch-circuit protection is provided by a 60 A class J fuse. The available interfaces allow the unit to handle drive power, feedback signals, and discrete machine I/O from one housing. This layout is suited for compact systems that need centralized control and field connectivity without additional interface modules.
Frequently Asked Questions about HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW:
Q: What mains voltage range does the HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW support?
A: The HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW operates on a mains connecting voltage of 3 x AC 200...500 V.
Q: What is the rated power output for the HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW?
A: This unit is rated for a maximum continuous power output of 25 kW.
Q: How many digital inputs are provided on the HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW?
A: There are 32 digital inputs available on this HCQ02.1E model for various control and automation tasks.
Q: What cooling method does the HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW use?
A: The device features an integrated air cooling system using an internal blower for thermal management.
Q: What is the degree of protection for the HCQ02.1E-W0025-A-03-B-L8-1S-NN-NN-PM-FW?
A: The degree of protection for this product is rated at IP 20, providing limited protection against solid objects and no protection from liquids.
