Product Description:

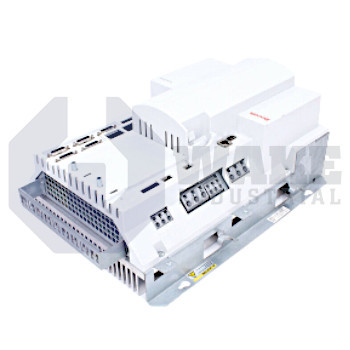

The HCQ02.1E-W0025-A-03-B-L8-1N-D1-NN-NN-FW feeding module belongs to the HCQ Micro Controls series from Bosch Rexroth Indramat. The device functions as the front-end power supply and basic control section for multi-axis drive packages, converting plant mains into regulated output while hosting an Embedded PC LX 800 for parameter handling and diagnostics. In automated conveyors, packaging machinery, and other motion systems, it provides the shared electrical supply needed for downstream inverters to operate from a common DC bus and exchange status data through the integrated micro-control architecture.

Electrical compatibility is based on a line range of 3 x AC 200...500 V at 50...60 Hz, so one model can cover common global utility voltages without tap changes. At rated load, the module provides up to 25 kW of power to the DC link, allowing connected axes to operate from a shared supply section. Upstream conductors are selected for a nominal draw of 44.0 A under UL evaluation, and this value also affects the thermal load on the blower-assisted cooling path. A housing classification of IP 20 indicates finger-safe openings but no liquid sealing, so the unit is intended for installation inside a ventilated enclosure. Its 320 mm width and 191 mm depth allow dense stacking alongside other HCQ modules without obstructing airflow or cable routing.

Coordination with upstream switchgear is achieved through a branch-circuit fuse rated at 60 A Class J, and the assembly carries a short-circuit withstand rating of 42000 A rms, permitting connection to high-capacity industrial feeders. The unit weighs 11.70 kg, which supports stable mounting on DIN rails or backplates without excessive panel loading. Its vertical dimension of 455 mm fits standard 600 mm control cabinets while still leaving room for cable bends and ventilation space above and below the module.
