Product Description

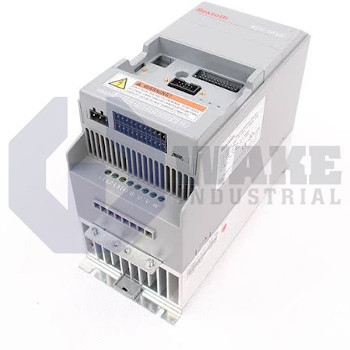

The EFC5610-4K00-3P4-MDA-NN-NNNNN-L1NN is a highly sophisticated frequency converter produced by highly trained technicians of Rexroth Indramat according to the international quality standard. This converter is designed specifically for industrial motors, it controls the speed, acceleration, position, and general operation of industrial motors by regulating the frequency it sends to the motor through the power cable. This frequency converter is renowned for its high flexibility and durability, under normal operating conditions, the converter operates with an efficiency of about 95 percent. The EFC5610-4K00-3P4-MDA-NN-NNNNN-L1NN frequency converter can also operate for more than five years without requiring any sort of repair or maintenance operation. The current overload capacity of this converter is about 150 percent of the rated current for 60 seconds or 100 percent of the rated current for 540 seconds.

The EFC5610-4K00-3P4-MDA-NN-NNNNN-L1NN contains a built-in air blower that works together with the controller’s heatsink to keep the internal temperature of the controller within the permissible range. This frequency converter is designed with an internal brake chopper and brake resistor which helps to protect the power circuit of the frequency converter from excess current sent back into the converter during motor deceleration. This frequency converter operates with the Modbus communication protocol which is a master/slave protocol. Some of the interfaces through which this frequency converter communicates with other parts of the industrial servo system include the GND interface, the RS485+ interface, and the RS485- interface. The power output that can be generated by this controller is about 4 kilowatts.

The EFC5610-4K00-3P4-MDA-NN-NNNNN-L1NN frequency converter is designed with a housing unit that meets the IP20 protection class, although this housing sufficient protection, operators should ensure the controllers are regularly cleaned to prevent the buildup of dust and other particles which can interfere with the smooth operation of the converter. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
