Product Description

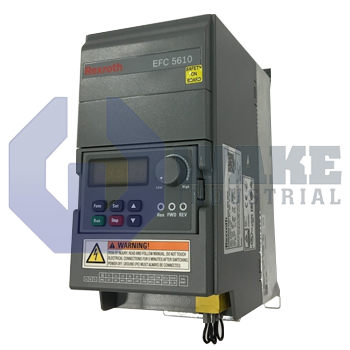

The EFC5610-1K50-3P4-MDB-7P-NNNNN-NNNN is a frequency converter produced by highly trained engineers of Rexroth Indramat. This machine is a revolutionary device that helps to convert alternating current from one frequency into another frequency that meets the requirements of an industrial production system. The EFC5610-1K50-3P4-MDB-7P-NNNNN-NNNN frequency converter can generate a rated power output of 1.5 kilowatts from the industrial motor while drawing a rated current of about 10.1 Amperes from the power supply unit. The overload capacity of this controller is as high as 150 percent for sixty seconds and 200 percent for one second. The operation of this frequency converter in the industrial environment must always be according to the instructions stated in the converter's documentation. Failure to obey the instructions can cause the converter to break down suddenly during operation.

The housing of the EFC5610-1K50-3P4-MDB-7P-NNNNN-NNNN frequency converter is designed according to the IP20 protection category; thus, it can protect the controller from the interference of large solid materials. The housing unit is also specially structured to allow for the easy installation of the converter into a control cabinet. This frequency converter contains an external brake resistance and an internal brake chopper which works together to protect the power circuit of the converter from the excess current generated during motor deceleration. This frequency converter contains a three-phase electrical connector through which it receives the electrical voltage it requires for operation; the main connection voltage of the EFC5610-1K50-3P4-MDB-7P-NNNNN-NNNN frequency converter is about 380  to 480 volts.

The installation, configuration, and maintenance of the EFC5610-1K50-3P4-MDB-7P-NNNNN-NNNN frequency converter should be carried out by well-trained personnel who have gone through the documentation. This converter contains special light-emitting diodes, which provide information on the rotating direction and the operating status of the industrial motor. The meaning of the light displayed in the converter is clearly stated in the converter’s documentation. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
