The Bosch Rexroth Indramat DM 8K 1301-D is part of the DM Servo Drives series and has a mass of 6.0 kg with a module width of 50 mm. It supports a DC link voltage of 670 VDC regulated and 715 VDC non-regulated, and utilizes air cooling as its cooling method. This drive features a SERCOS setpoint interface and a resolver encoder interface, with a maximum current of 10 Arms at 4 kHz open loop.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

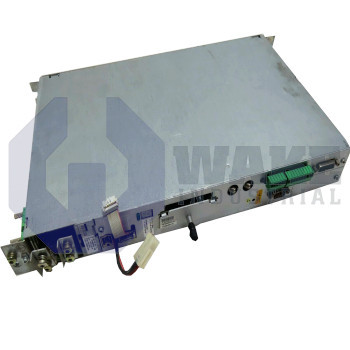

Bosch Rexroth Indramat manufactures the DM 8K 1301-D as part of the DM Servo Drives series. The module converts a common DC bus into three-phase motor power while exchanging motion commands over a fieldbus. In automated gantries, packaging lines, and assembly stations, it forms the closed-loop interface between a SERCOS motion controller and the motor resolver. This allows the axis to maintain commanded speed and position with high repeatability during synchronized motion. Its design is intended for cabinet installation, where forced air cooling helps keep internal temperature within the permitted range.
The 24 V control rail draws 0.89 A, supplying logic circuits and enabling functions during main-bus shutdowns. The DC link accepts regulated 670 VDC and continues up to 715 VDC when the supply is unregulated, providing headroom for regenerative peaks. With a carrier frequency of 4 kHz, the open-loop stage can deliver a peak motor current of 10 Arms for acceleration events, while the closed-loop limit is 5.7 Arms for continuous duty. This separation between peak and continuous current supports short acceleration demands without exceeding steady-state thermal limits. Thermal loading during operation produces a maximum power dissipation of 96.5 W, which is removed by the built-in air cooling fan. Incremental encoder feedback is processed up to 1 MHz, and resolver signals are decoded at 12-bit resolution to support accurate position control. Sine and cosine encoder channels are accepted up to 800 kHz and 50 kHz respectively.
The housing width is 50 mm, which helps with side-by-side cabinet mounting, and the drive weighs 6.0 kg. The narrow housing is useful where several axes must be mounted in the same enclosure with limited lateral space. Position data are buffered internally with a multi-turn resolution of 32 bits, while single-turn detail reaches 20 bits for fine interpolation across long strokes. Command values arrive through the SERCOS setpoint interface, and resolver-based commutation supports stable axis control across the available feedback ranges.
Frequently Asked Questions about DM 8K 1301-D:
Q: What is the rated current for the DM 8K 1301-D servo drive?
A: The rated current in closed-loop operation for this drive is 5.7 Arms at 4 kHz.
Q: How is the DM 8K 1301-D servo drive cooled?
A: This model uses an air cooling method to regulate temperature during operation.
Q: Which setpoint interface does the DM 8K 1301-D utilize?
A: The DM 8K 1301-D supports SERCOS as its setpoint interface for advanced communication.
Q: What is the highest incremental encoder frequency supported by the DM 8K 1301-D?
A: The incremental encoder input supports signal frequencies up to 1 MHz.
Q: What is the single-turn resolution of the DM 8K 1301-D servo drive?
A: This servo drive provides a single-turn position resolution of 20 bits.
