Product Description:

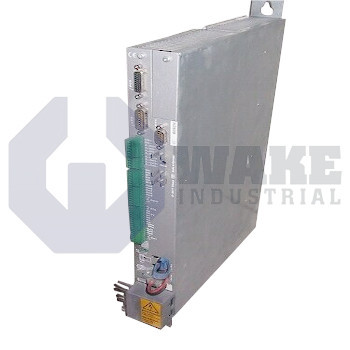

The DM 15K 4101-D drive module is produced by Bosch Rexroth Indramat as part of the DM Servo Drives series. It conditions high-voltage DC from a shared supply and feeds three-phase current to connected servo motors, following an analog setpoint sent by the machine controller. By executing current loops at 8 kHz, the module supplies precise torque and velocity control for axes used in packaging lines, pick-and-place units, and other motion platforms that demand fast dynamic response.

The internal control electronics draw only 0.89 A from the 24 V service supply, keeping cabinet auxiliary power low. Energy for the power stage is stored on a DC link that operates at a regulated 670 VDC during normal operation and can climb to 715 VDC when the regulator is bypassed, giving headroom for braking energy. Under a continuous load, the current limit is 7.4 Arms, while short-term peaks reach 15 Arms so the axis can accelerate inertia without saturation. Thermal dissipation inside the housing is limited to 121 W, a figure that helps determine enclosure ventilation needs. Feedback devices connect through either an STG or MTG encoder interface, and the analog setpoint port accepts differential ±10 V commands for speed or torque control.

Mechanical dimensions support dense panel layouts: the aluminum heat-sink body weighs 6.0 kg, measures only 50 mm wide, and stands 445 mm high, so multiple units can mount side by side on a standard rail. Resolution of the incremental interface reaches 16 bits, while the STG and MTG ports provide 20-bit and 32-bit word lengths respectively, giving the drive enough position granularity for very fine encoder-based motion. A compact mechanical design integrates fans, bus capacitors, and control boards into one enclosure, eliminating the need for external chokes or add-on function cards.
